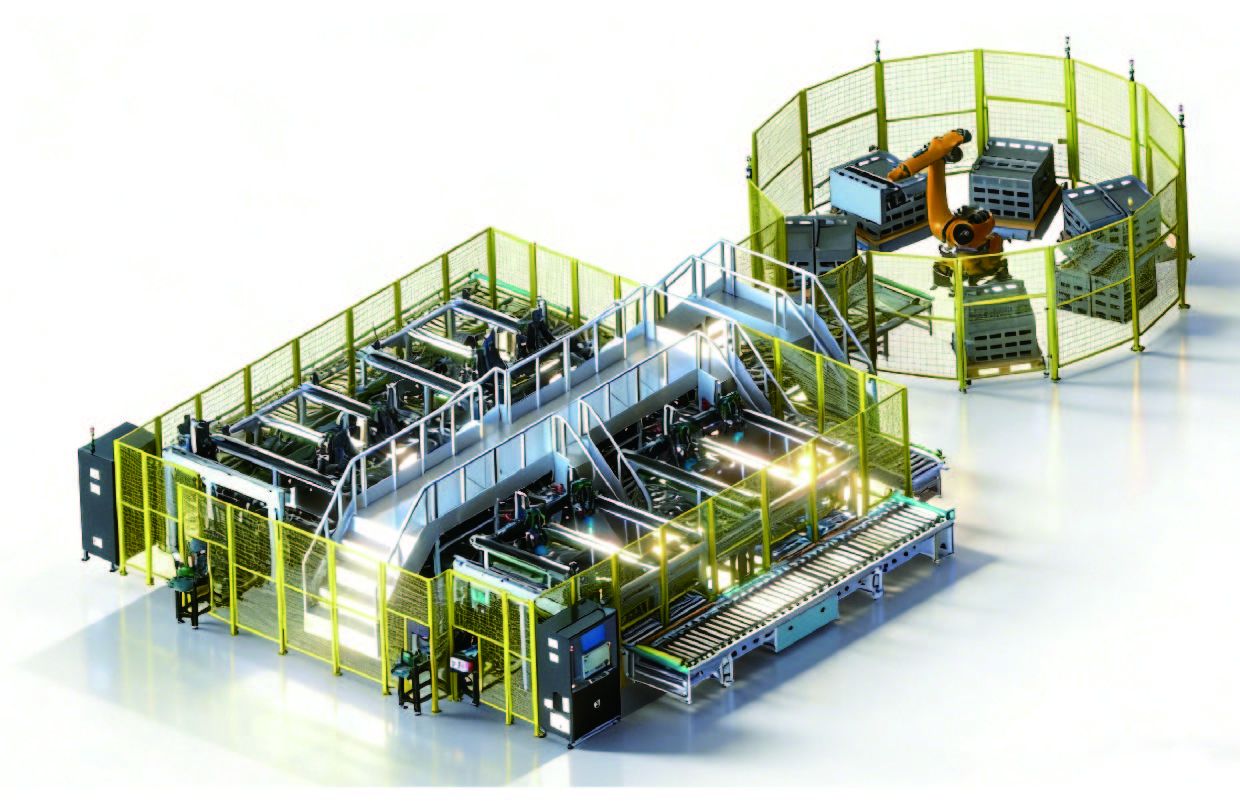

Prismatic Cell Sorting System

· Product Description

This sorting machine is mainly used for sorting aluminum shell lithium ion cells by open circuit voltage (OCV), AC internal resistance and capacity. It is equipped with QR code scanning function. Technical Parameters 1. Final product yield: ＞99.9% (excluding incoming defects); 　Failure rate (DT): ≤1%; CPK＞1.67 2. Production capacity: 1–30 PPM; customized efficiency available 3. Voltage range: 0–5 V 4. Voltage test accuracy: ±(0.0035%set + 0.0005%FS) 5. Voltage display resolution: 2 μV 6. IMP (Internal Resistance) range: 0–3000 Ω 7. IMP test accuracy: ±(0.5%rdg + 10 dgt) 8. IMP resolution: 0.1 μΩ 9. Discharging & stacking: ABB or KUKA 6 axis robots stack 　cell trays of different grades onto pallets, followed by discharging 　via manual forklifts or AGVs 10. OCV test: Agilent 34461A voltmeter; IMP test: Hioki BT3562 　Images are for reference only, subject to actual products.
