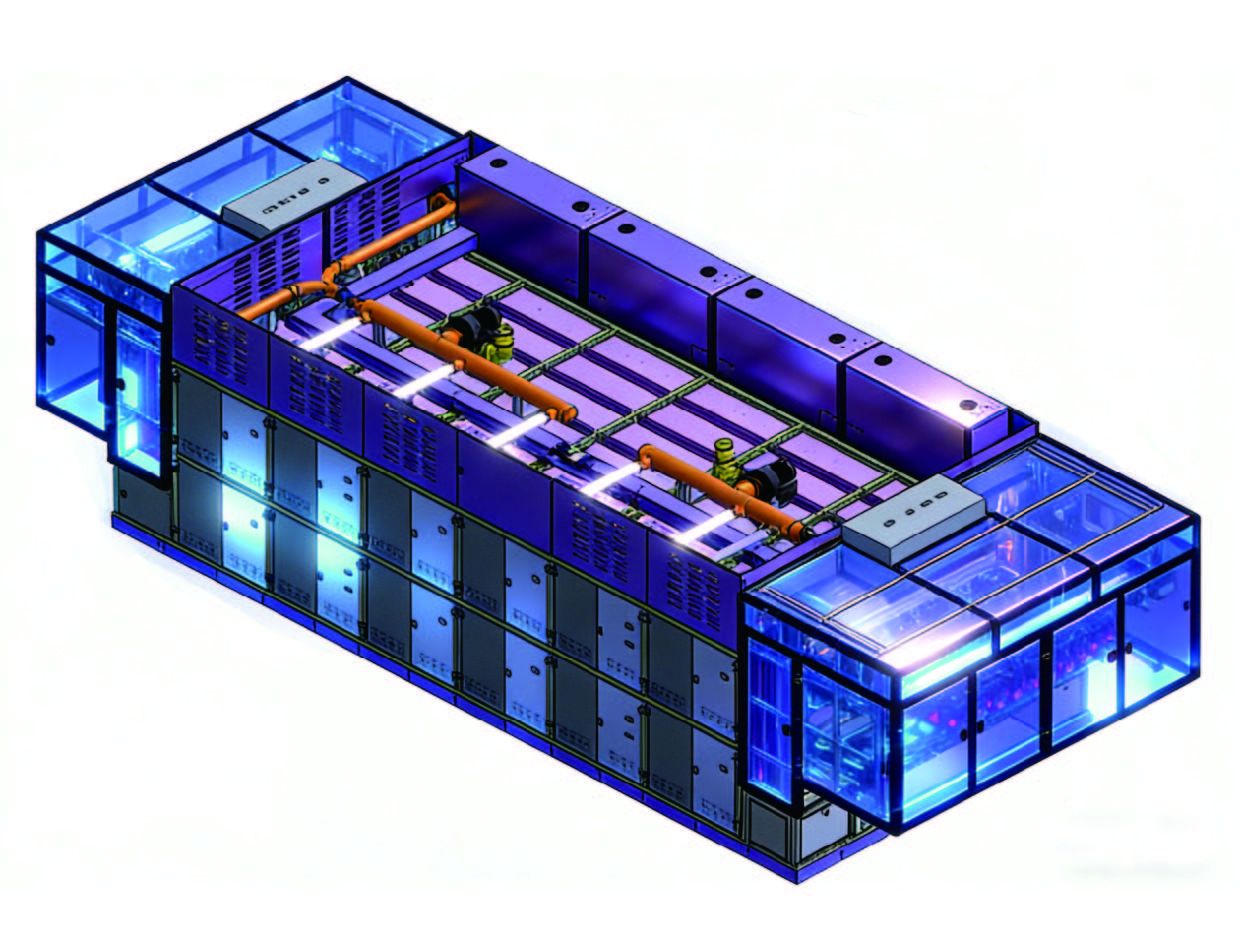

Prismatic Cell Preheating Furnace

· Product Description

1. This machine is applied for cell preheating after winding, with core functions of automatic cell loading, preheating and
　automatic unloading. It is composed of cell loading & unloading module, preheating module and maintenance ladder.
　All single machines and distributed systems realize unified data interaction with MES via scheduling system.
2. Working Principle Air-circulating Furnace: Adopts special hot air circulation system with multi-module and multi-point
　temperature control detection design. Contact Furnace: Bare cells make direct contact with heat sources to transfer heat
　directly to cell bodies.
3. Features Cells are heated by hot air circulation or heating plate contact mode. Preheating before hot pressing effectively
　prevents cell deformation.

Technical Parameters：

1. Constant temperature full-load uniformity: ±5℃
　for air-circulating type, ±3℃ for contact type
2. Temperature control accuracy: ±1℃
3. Temperature range: Ambient temperature ~ 130℃
4. Control mode: PID closed-loop control
5. No-load heating time: Less than 20 minutes
