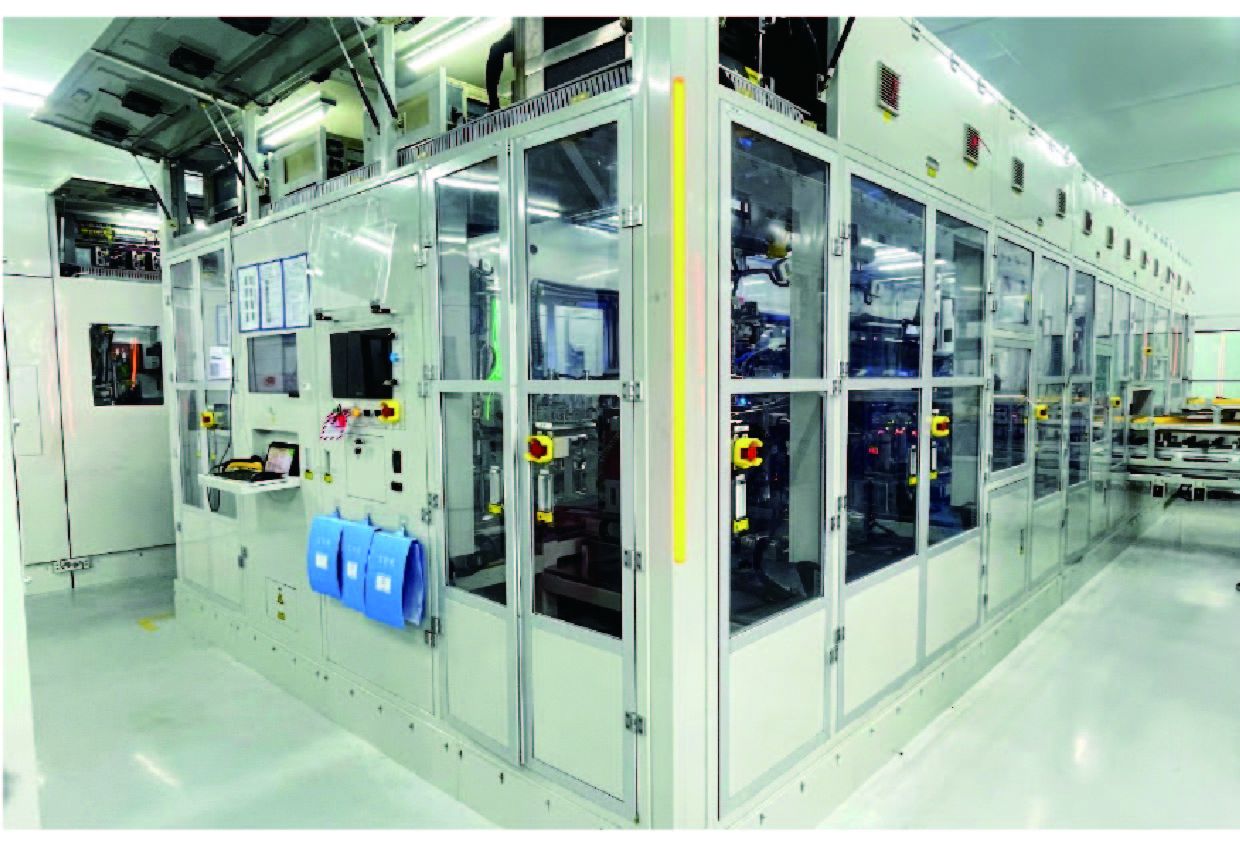

Prismatic Cell Ultrasonic Final Welding Machine

· Product Description

This machine is mainly used for ultrasonic welding between tabs and transition pieces. It consists of cell code scanning
feeding unit, cell polarity detection unit, upper transition piece feeding unit, tab and transition piece ultrasonic welding unit,
welding mark taping unit, CCD inspection unit, NG buffer station and cell unloading unit.

Machine dimension (L*W*H): 12000*3400*2800mm
Machine weight: 22 tons

Technical Parameters：

1. Production efficiency: ≥15 PPM
2. Fixture consistency: ≤0.2mm
3. Welding position accuracy: ≤±0.5mm
4. Taping accuracy: ±1mm
5. Failure rate: ≤2%
6. Product yield: ≥99.85%
