Prismatic Cell Inkjet Coating Machine

· Product Description

An automatic UV coating equipment specially designed for lithium ion batteries. It integrates high precision spraying technology,
UV curing technology and advanced automatic control system, ensuring uniform, smooth insulating coating with excellent

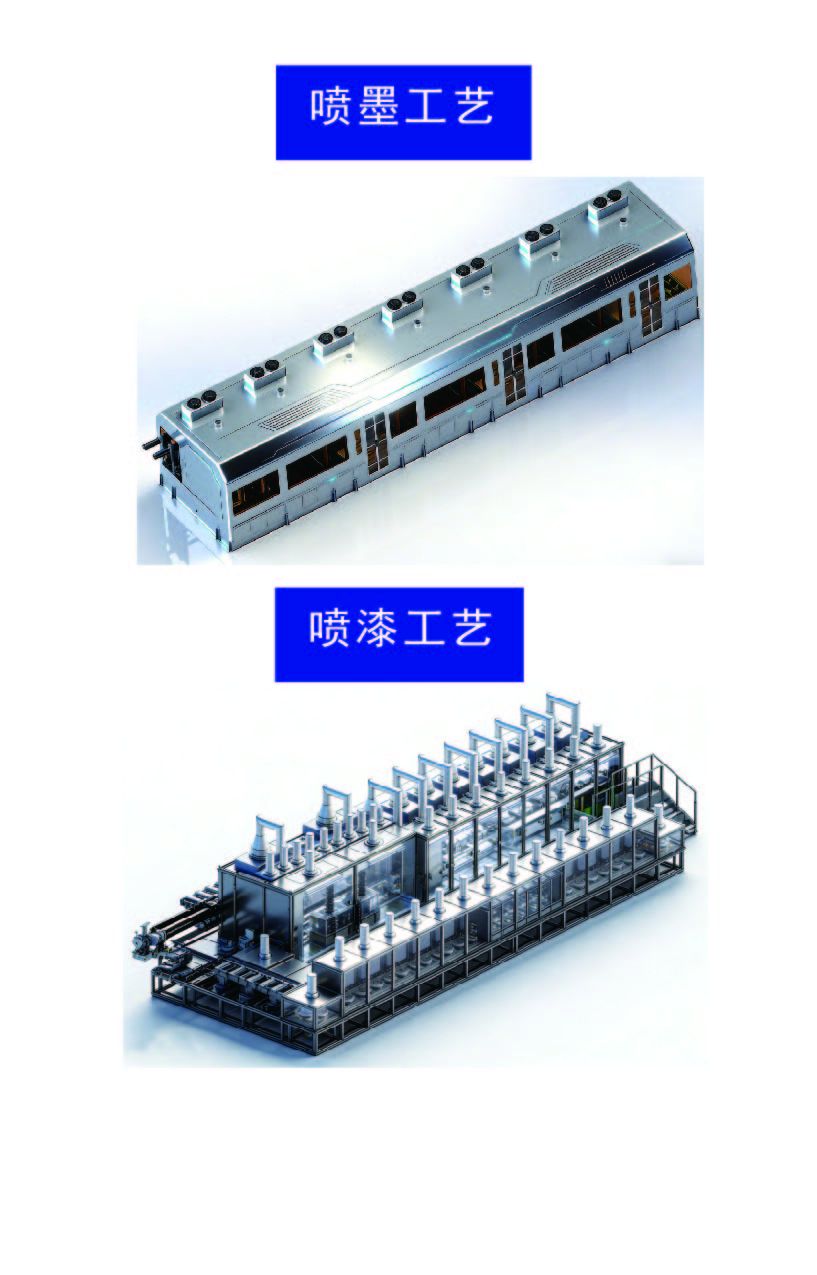

electrical insulation performance on cell surfaces. Inkjet Coating Process Spray Coating Process

Technical Parameters
1. Production tact time: 1–20 PPM (single channel)
2. Equipment failure rate (DT): ≤2.0%
3. First pass product yield: ＞99.99%
4. Integrated dimension, insulation and coating thickness
　testing functions
5. Eco friendly UV coating compliant with RoHS and REACH,
　solvent free and non corrosive
6. High shear resistance: UV coating shear strength ≥10 MPa
7. Strong adhesion: UV coating adhesion ≥80 N/m
8. Acid alkali and high voltage resistance: acid alkali resistant,
　withstands AC 2230 V / DC 4000 V
9. Long service life: no bubbles generated in UV coating
10. High yield: UV coating resists degradation for long term use
