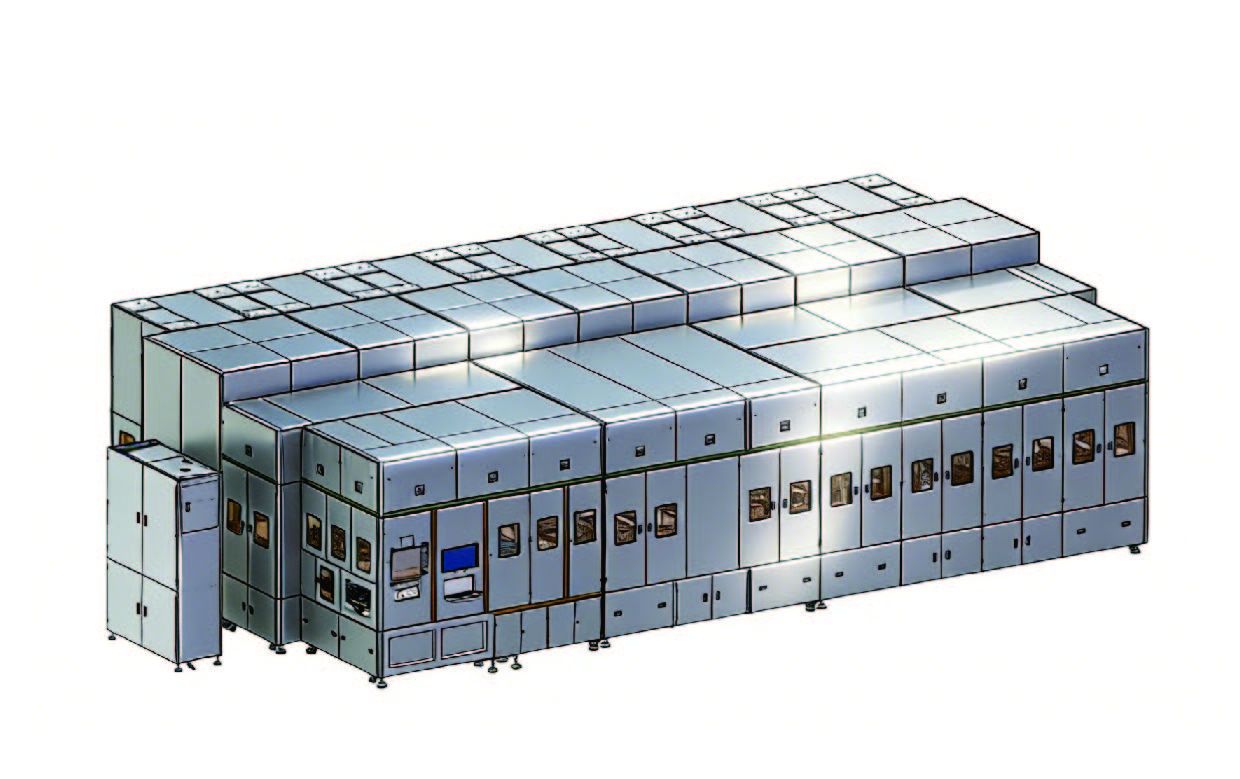

Prismatic Cell Electrolyte Filling Machine

· Product Description

It is mainly applied to one-time automatic electrolyte filling for baked cells. It connects with upstream drying process,
and performs pre-scanning, Hi-pot test, pre-weighing, palletizing, sleeve mounting, leakage test, electrolyte filling,
standing, sleeve dismounting, depalletizing, post-scanning, post-weighing, wiping, formation nail insertion,
then transfers cells to downstream formation process.

Machine dimension (L*W*H): 12100*6530*3400mm (subject to actual layout)
Machine weight: Over 30 tons

Technical Parameters
1. Designed capacity: 16 PPM
2. Filling mode: Vacuum / atmospheric pressure filling;
　Standing mode: Isobaric standing
3. Filling volume: 100~1200g
4. Filling accuracy: ±1.5g for volume below 200g,
    ±0.8% for volume above 200g
5. Primary yield: ≥99.5%
6. Failure rate: ≤2%
7. Operation availability: ≥95%
