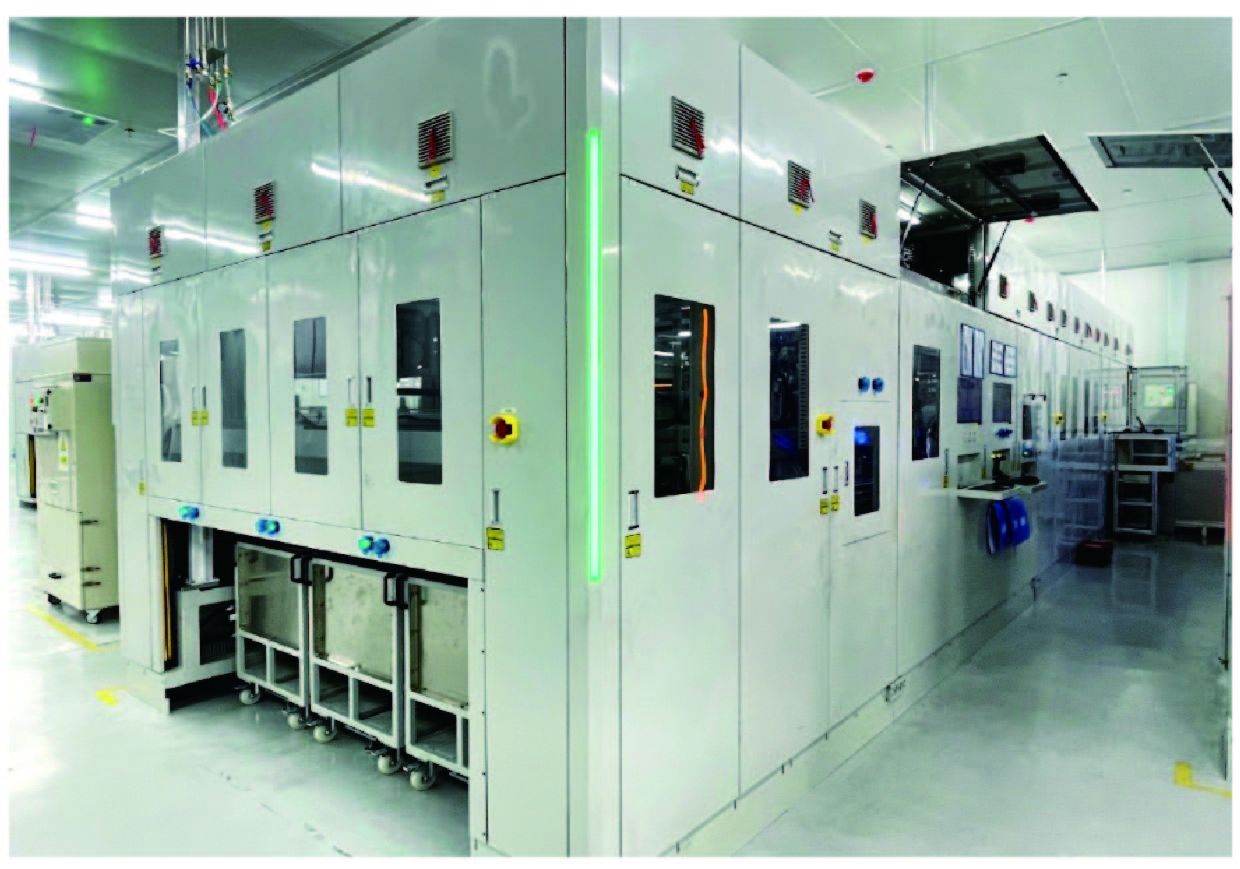

Prismatic Cell Transition Tab Welding Machine

· Product Description

This machine is dedicated to laser welding between transition pieces and covers. Its functions include cover feeding,
marking and code scanning, top cover transition piece laser welding, welding seam dust removal, welding seam CCD
inspection, welding seam taping, cell assembly, bundling adhesive pasting, taping inspection and cell unloading.

Machine dimension (L*W*H): 11000*7700*2800mm
Machine weight: 30 tons

Technical Parameters：

1. Production efficiency: ≥15 PPM
2. Fixture cell positioning accuracy: ≤±0.2mm
3. Welding speed: 200mm/s
4. Taping accuracy: ±1mm
5. Failure rate: ≤2%
6. Product yield: ≥99.85%
