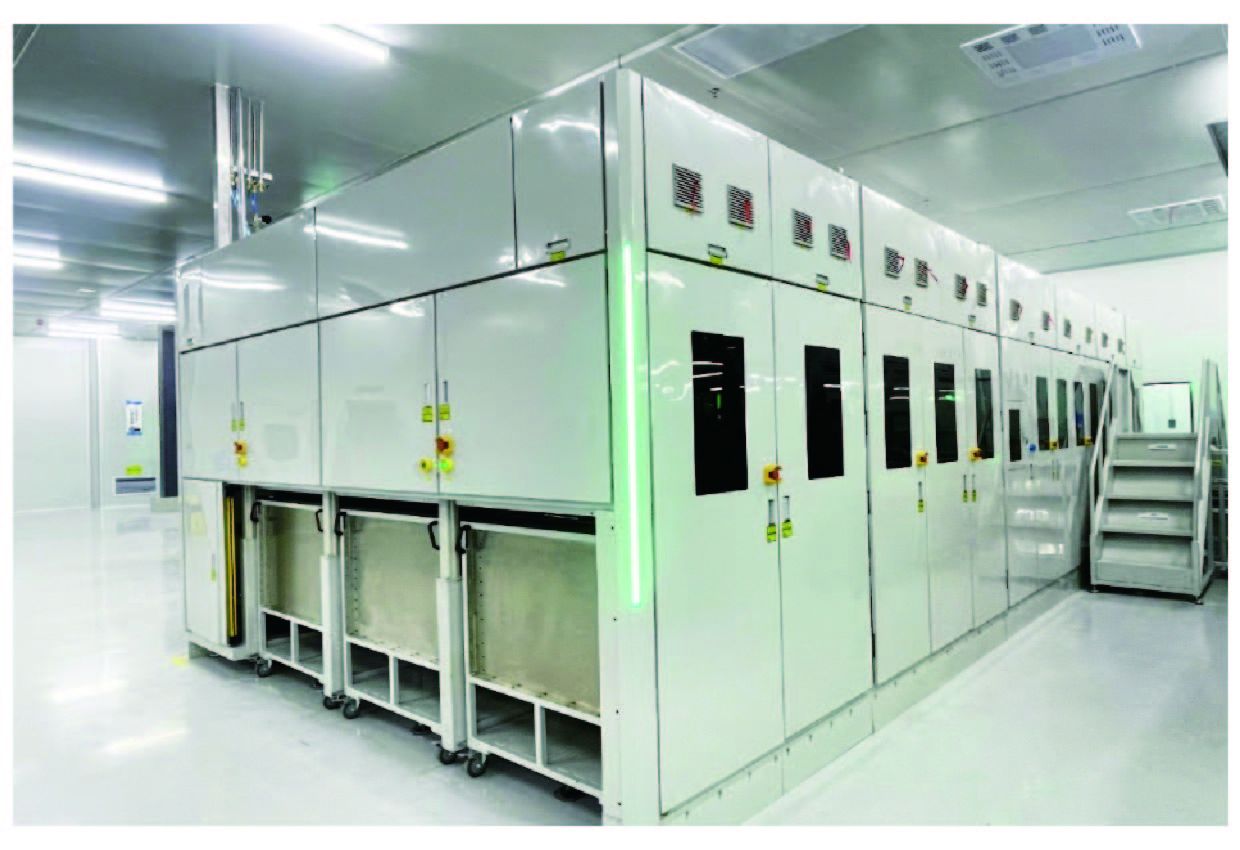

Prismatic Cell Shell Loading Pre-Welding Machine

· Product Description

This machine is applied for cell insertion into aluminum shells and spot pre-welding between top covers and aluminum shells.
It realizes cell feeding, cell cleaning, aluminum shell feeding, aluminum shell cleaning, cell casing insertion, top cover pressing,
step inspection, laser pre-welding and cell unloading.

Machine dimension (L*W*H): 6700*5000*2800mm
Machine weight: 25 tons

Technical Parameters
1. Production efficiency: ≥15 PPM
2. Cell positioning accuracy: ≤±0.5mm
3. Casing insertion thrust: ≤100N
4. Press-fitting force: ≤1000N
5. Alignment accuracy of aluminum shell and top cover: ≤±0.5mm
6. Failure rate: ≤2%
7. Product yield: ≥99.85%
