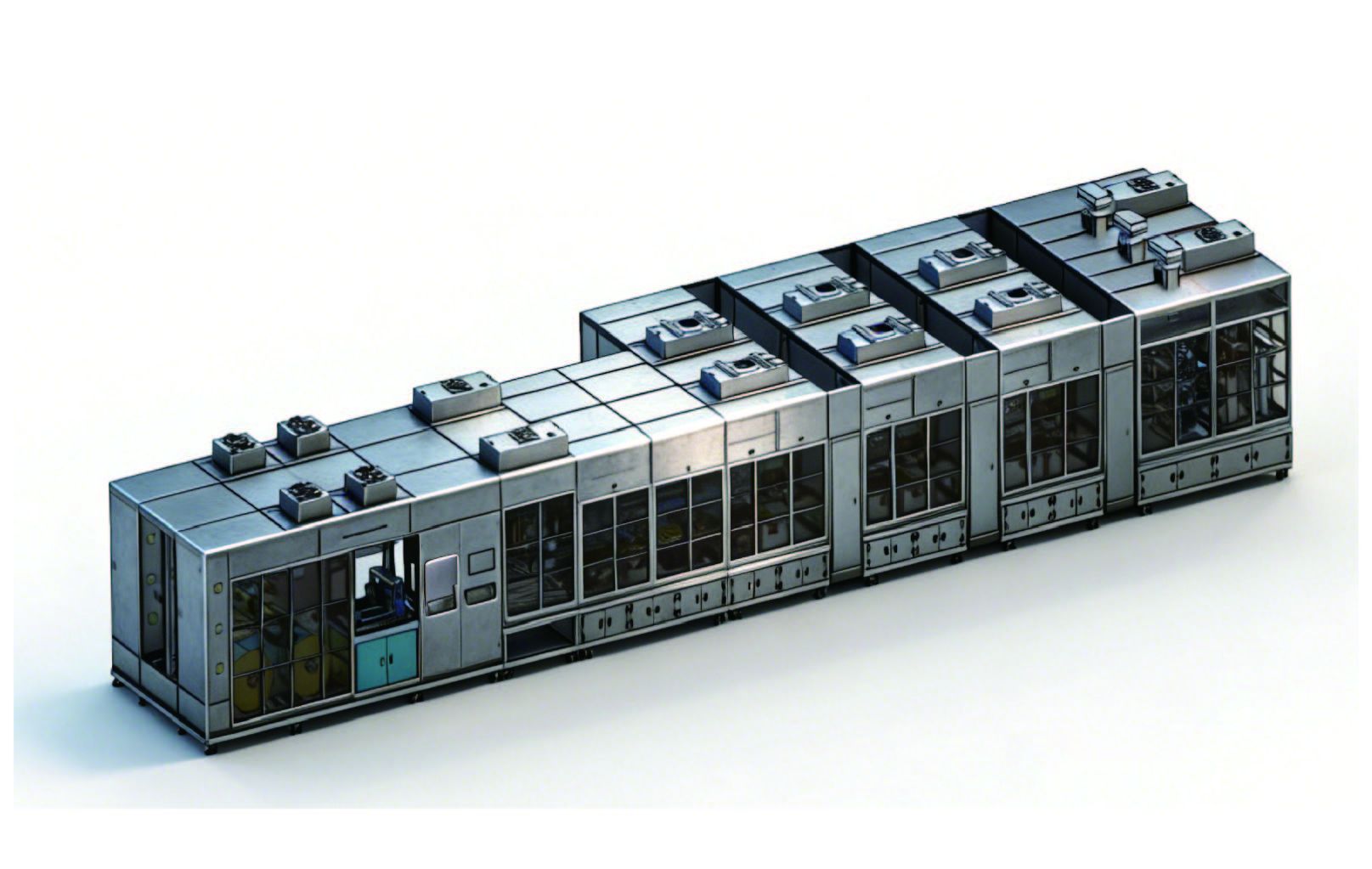

Laser Cutting, Stacking & Hot Pressing Integrated Machine

· Product Description

This machine adopts laser technology to continuously cut and shape tabs from coiled materials, stack them into cells, and
complete discharging after hot pressing and Hi-pot test.

Performance Indicators
1. Machine dimension: L17000*W3800*H3500mm
2. Maximum compatible outer diameter: Φ1000mm for
　6-inch reel
3. Cutting dimensional accuracy: ≤±0.2mm
4. Efficiency: Cutting speed ≥240PPM; single stacking
　time ≤0.17s, auxiliary time ≤10s
5. Product yield: ≥99.5%, failure rate ≤2%
6. Stacking alignment: interlayer tolerance ≤±0.3mm,
　overall tolerance ≤±0.5mm
7. Closed-loop product quality inspection
8. Motion control card adopted instead of PLC for control
9. Compatible with semi-solid and solid-state battery processes

Optional Functions
1.Automatic reel change, automatic loading and unloading
2.Laser tab cutting
3.One-click focusing
4.Negative electrode laser V-cutting
5.Intelligent speed regulation
