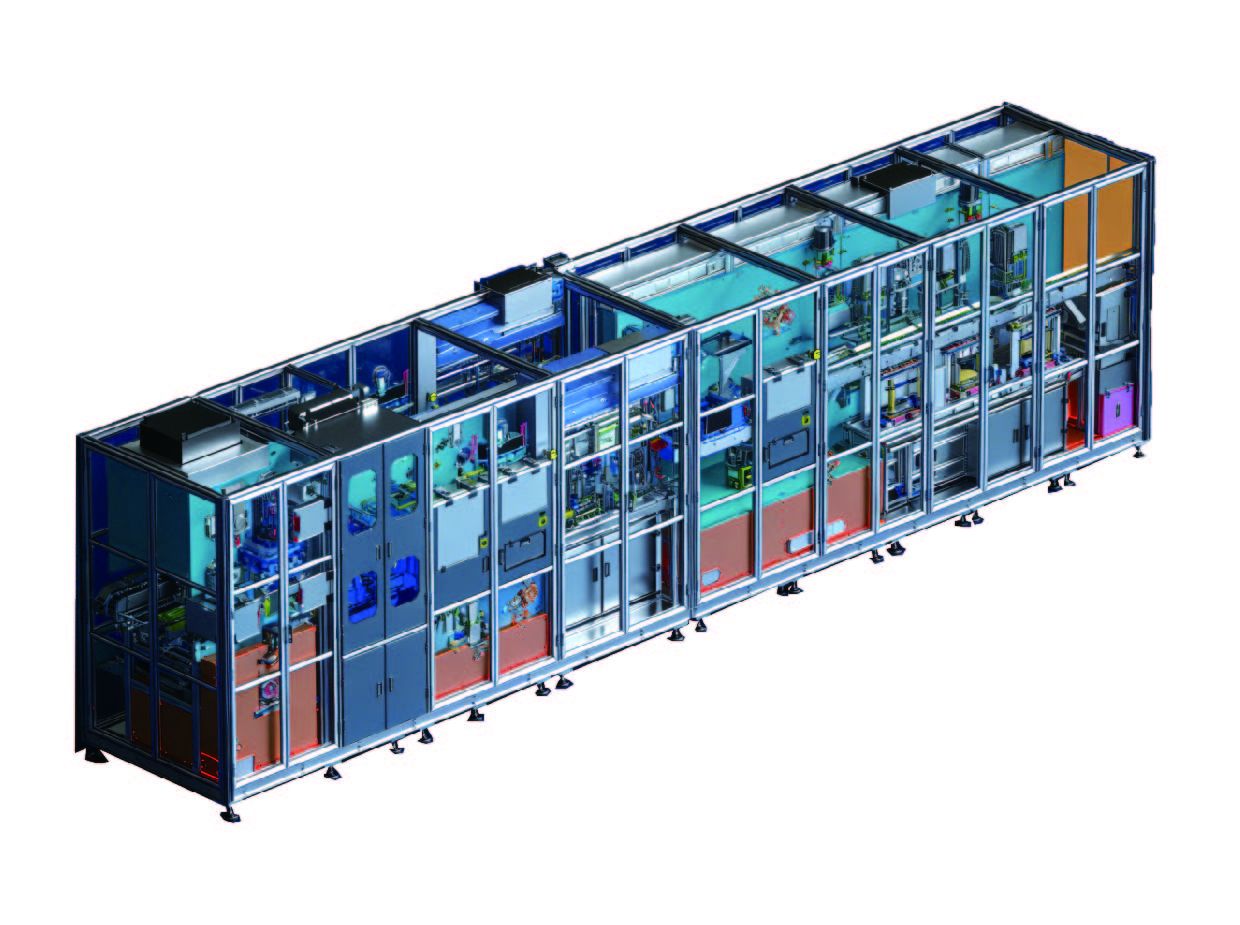

Laser Die-Cutting & Slitting Integrated Machine

· Product Description

This machine uses laser technology to continuously shear and shape tabs from coiled materials to achieve roll-to-sheet collection.

Performance Indicators
1. Maximum compatible outer diameter: Φ1000mm
    for 6-inch reel
2. Cutting dimension accuracy: ≤±0.2mm
3. Production efficiency: ≥200PPM; applicable
    web width: 100~350mm
4. Product yield: ≥99.5%, failure rate ≤1%
5. Cutting burr ≤15μm, cutting accuracy ≤±0.15mm
6. Closed-loop product quality inspection
7. Machine dimension (L*W*H): 10.0*2.2*2.8m
8. Machine weight: 12 tons

Optional Functions
1.Automatic reel change, automatic loading and unloading
2.Ultrasonic dust removal
3.One-click focusing
4.Negative electrode laser V-cutting
5.Intelligent speed regulation
6.Multiple machine types available: shearing machine, laser die-cutting & shearing integrated machine
7.Compatible with various web widths: 350mm, 600mm, 800mm
