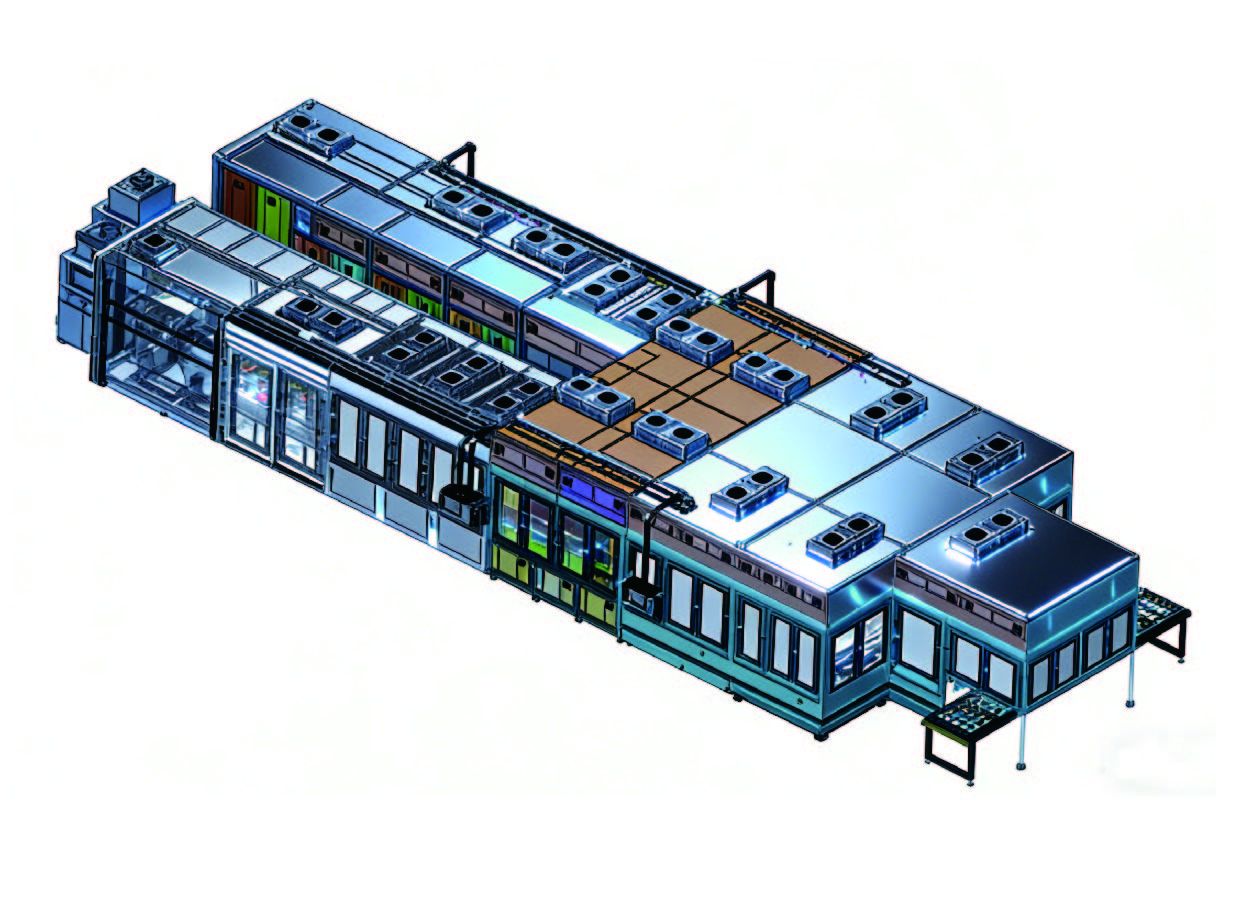

High-speed Cutting & Stacking Integrated Machine

· Product Description

This machine consists of positive electrode cutting section, negative electrode cutting unit, stacking section and hot pressing &
taping section. It continuously stacks electrodes into cells via negative electrode slicing and batch picking & stacking modes to
boost production efficiency and product quality.

Performance Indicators
1. Applicable width of positive electrode, negative electrode and
　separator: 330-590mm reel; tape width: 10-16mm; max outer diameter
　of positive and negative electrode rolls: Φ700mm
2. Overall cutting accuracy: ≤±0.15mm
3. Die-cutting efficiency ≥400PPM; single stacking time ≤0.15s,
　auxiliary time ≤2s per electrode assembly
4. Product yield: ≥99%, failure rate ≤2%
5. Electrode positioning deviation correction accuracy during stacking: ≤±0.2mm
6. Alignment accuracy of composite A/B side separator ≤±0.5mm
7. Closed-loop product quality inspection
8. Machine dimension (L*W*H): 17.5*5.6*3.8m
9. Machine dimension (L*W*H): 16*5*2.6m
10. Machine weight: 50 tons
