Laser Die-Cutting & Winding Integrated Machine--Cylindrical Cell

· Product Description

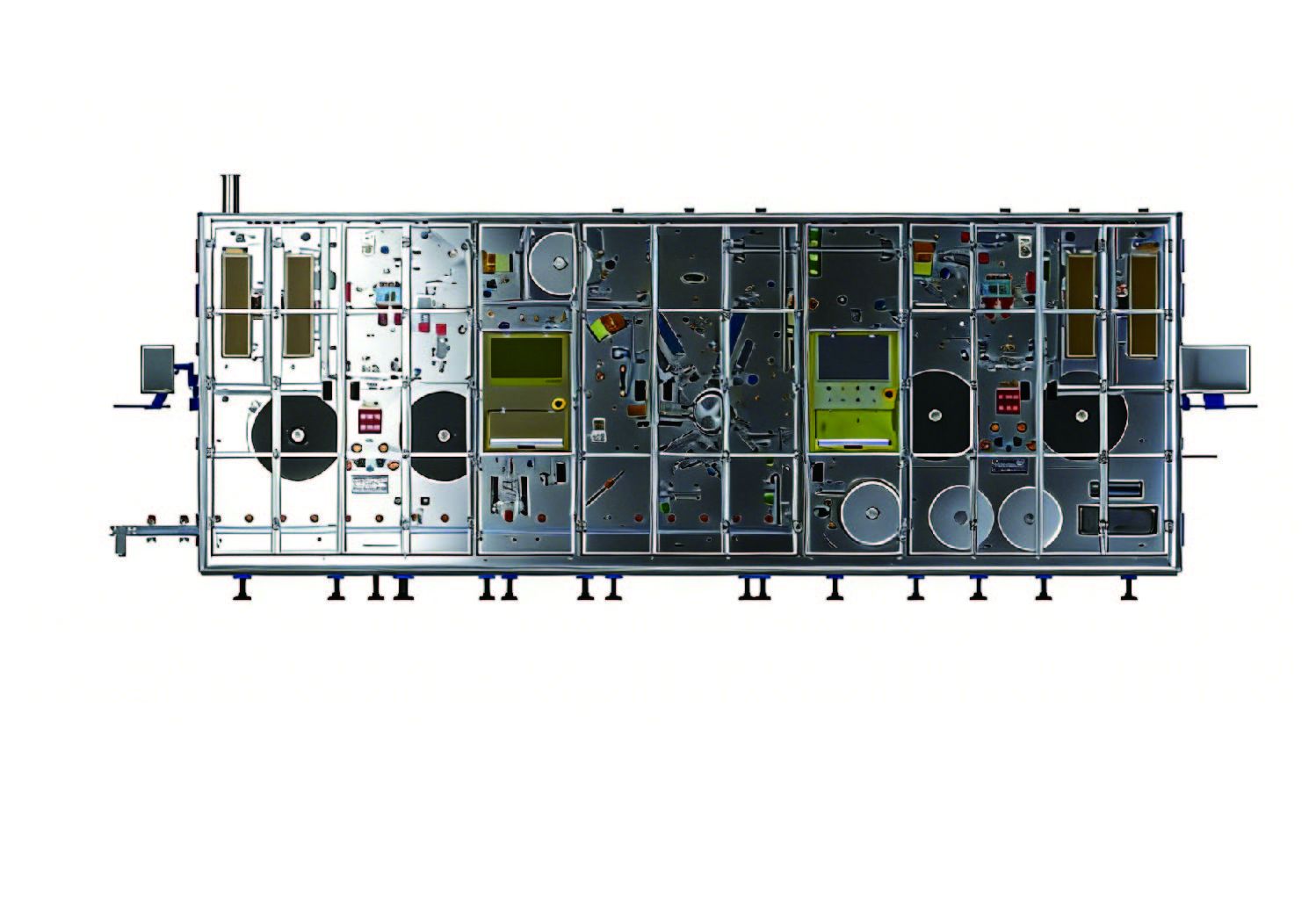

This machine adopts laser technology to continuously shape and cut tabs of coiled materials and wind them into cylindrical cells.

Performance Indicators
1. Maximum compatible outer diameter: Φ700mm for
　6-inch reel
2. Cutting dimensional accuracy: ≤±0.2mm
3. Efficiency: Die-cutting speed ≥90m/min,
　winding speed ≥2.5m/s
4. Product yield: ≥99.5%; failure rate ≤2%
5. Overhang alignment: ≤±0.3mm
6. Tab alignment: ≤±3mm
7. Closed-loop product quality inspection
8. Machine dimension (L*W*H): 6.5*2.6*2.6m
9. Machine weight: 12 tons

Optional Functions
1.Tab pre-bending
2.Tab stiffener forming
3.Automatic reel change
4.One-click focusing
5.Tab flattening
6.Taping for discontinuously coated electrodes
7.Cell appearance inspection, cell roundness inspection
8.Electrode surface defect detection, electrode damage detection
9.Multiple models: 18-26 series, 32 series, 46 series
