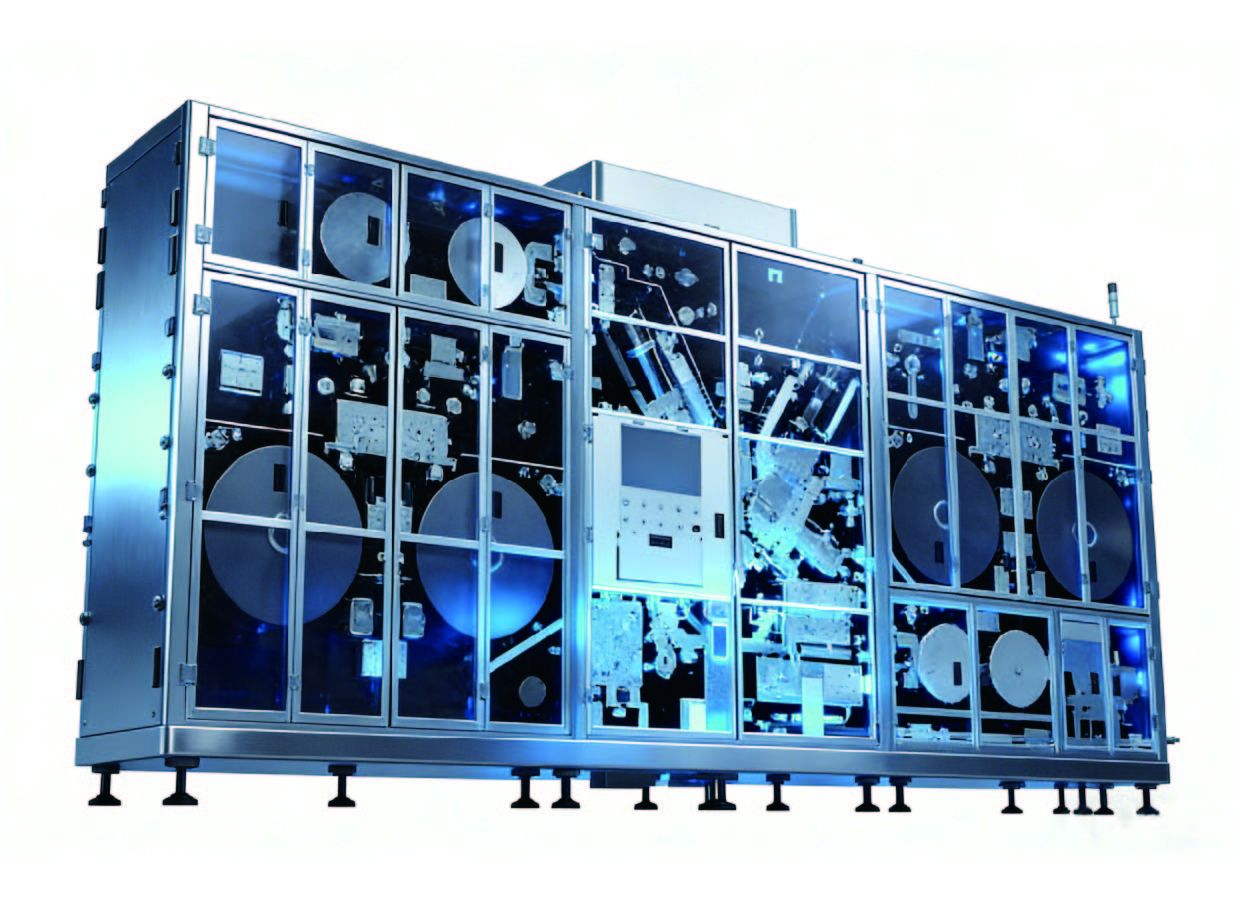

Winding Machine

· Product Description

This machine winds positive electrodes, negative electrodes and separators into prismatic cells through unwinding, tension
control and deviation correction.

Performance Indicators
1. Max compatible outer diameter: Φ800mm
    for 6-inch reel
2. Efficiency: 6 PPM for 16 meters per unit
3. Product yield: ≥99.5%; failure rate ≤2%
4. Overhang alignment: ≤±0.3mm
5. Tab alignment: ≤±3mm
6. Closed-loop product quality inspection
7. Winding tension fluctuation: ±3%
8. Machine dimension (L*W*H): 6.0*2.7*2.85m
9. Machine weight: 12 tons

Optional Functions
1.Automatic reel changing, automatic taping, automatic loading and unloading
2.Ultrasonic dust removal, brush dust removal, air knife dust removal
3.Simultaneous cutting of electrodes and separators to shorten auxiliary winding time by 2 seconds
4.One-click model switching with automatic adjustment of deviation corrector and color mark sensor position
5.Automatic perimeter adjustment of winding needles
6.Large winding needle perimeter range: 600-1200mm
7.Leading and trailing edge protective adhesive cutting, inner ring adhesive cutting, full-side or narrow-side end taping
