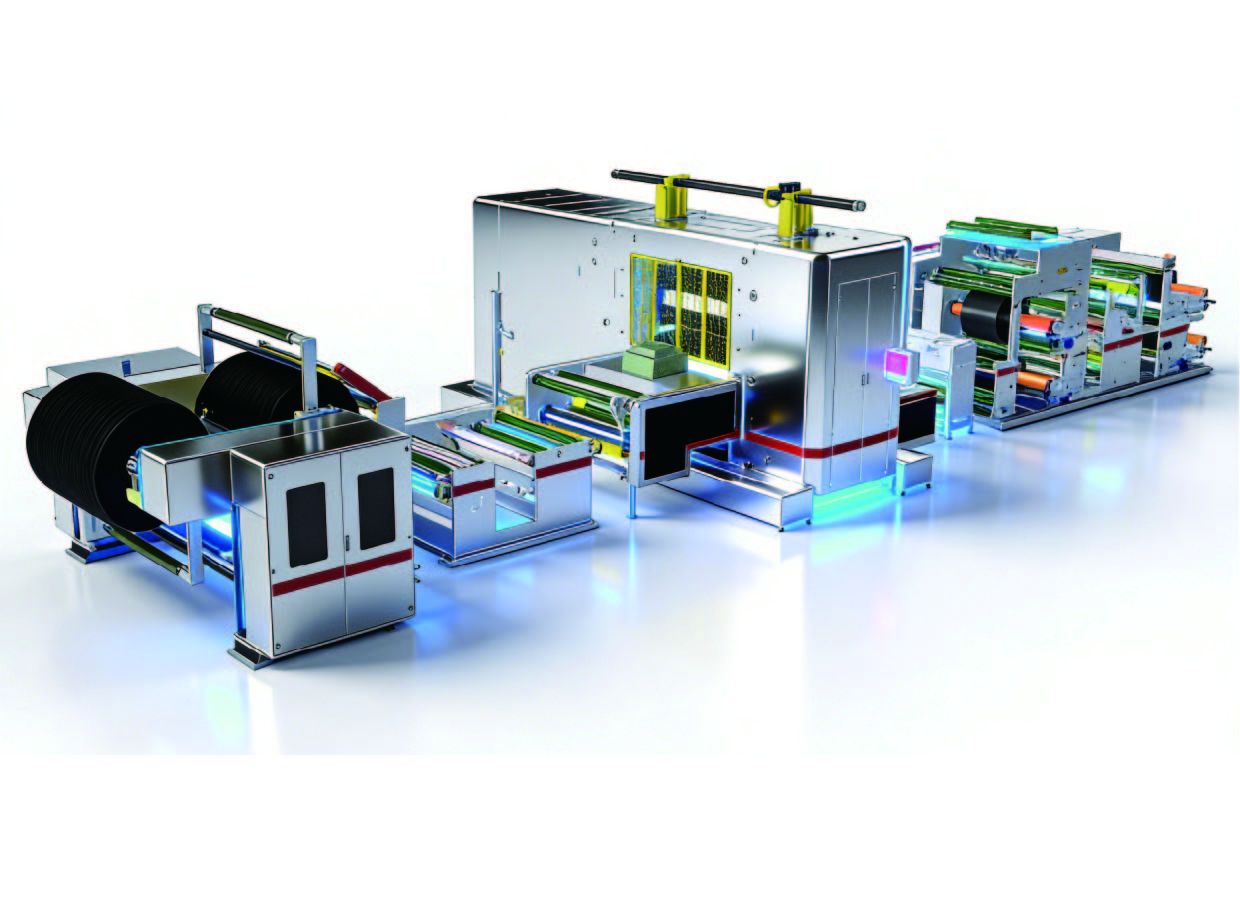

Rolling and Slitting Integrated Machine

· Product Description

This machine adopts continuous hydraulic counter-roller device to evenly roll electrode sheets, perform slitting
and complete rewinding.

Performance Indicators
1. Machine dimension: L21000*W6500*H3800mm
(single pair of rollers)
2. Maximum compatible outer diameter:
 Φ1500mm for 6-inch reel
3. Rolling accuracy: ±1.5μm
4. Production speed: 120m/min
5. Slitting width accuracy: ±0.3mm
6. Compatible web width: 200~1600mm
7. Product yield ≥99.5%; failure rate ≤2%
8. Camber height: 1mm/m
9. Winding alignment accuracy: ±0.5mm

Optional Functions
1.Hot rolling roller,
2.Constant gap control,
3.Elongation rate detection,
4.Constant pressure online gap adjustment,
5.Laser roller cleaning,
6.Laser slitting,
7.Laser/capacitance roller gap detection,
8.Foil infrared heating,
9.Foil electromagnetic heating,
10.Foil pre-rolling
