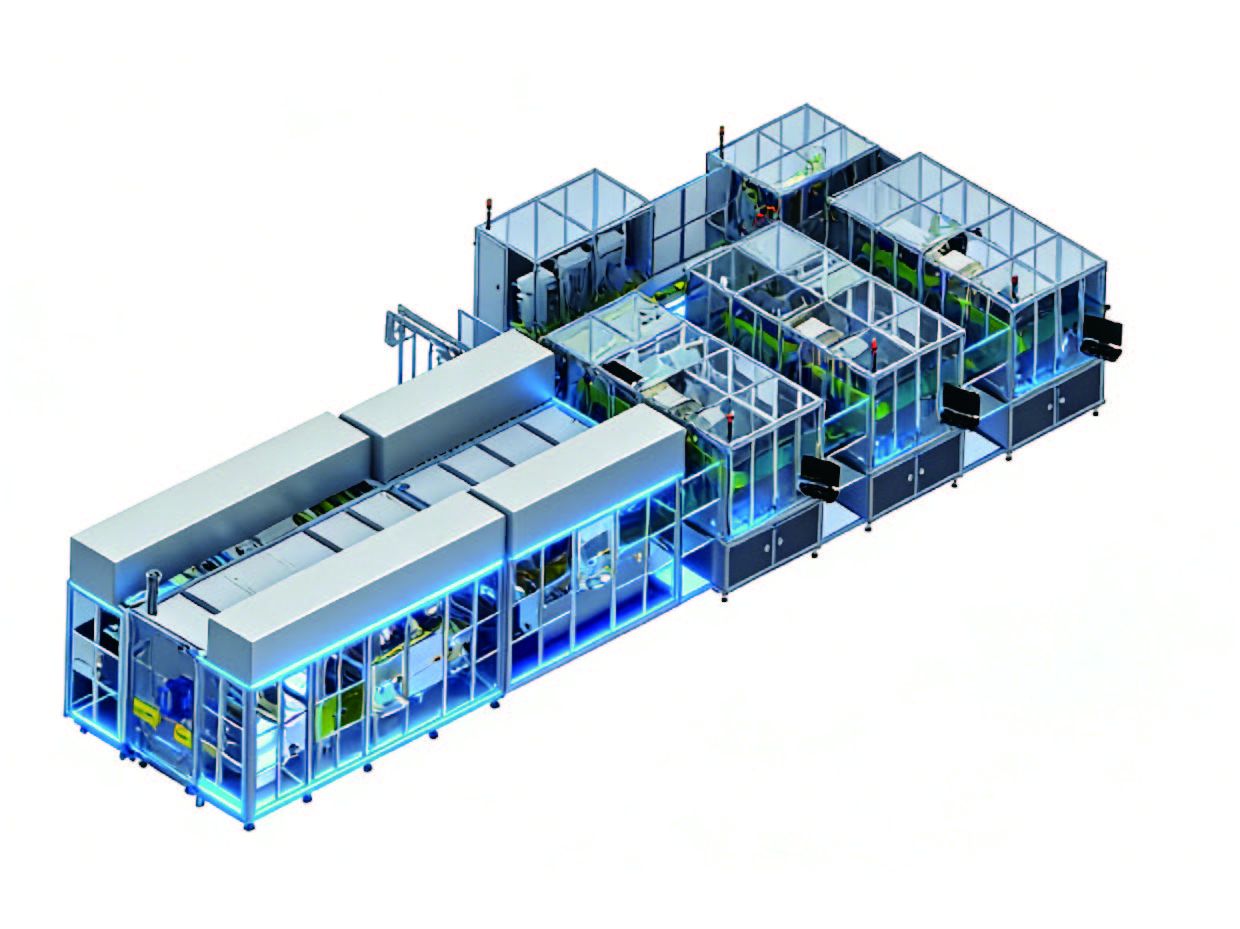

Cutting and Stacking Integrated Machine

· Product Description

This machine adopts laser technology to continuously cut coiled materials into shaped tabs and stack them into finished cells.
Performance Indicators
1. Max compatible outer diameter: Φ1000mm for 6-inch reel
2. Cutting dimensional accuracy: ≤±0.2mm
3. Efficiency: Cutting speed ≥200 PPM
4. Single stacking cycle ≤0.5s, auxiliary time ≤10s
5. Product yield: ≥99.5%; failure rate ≤2%
6. Interlayer stacking alignment: ≤±0.3mm
7. Overall stacking alignment: ≤±0.5mm
8. Closed-loop product quality inspection
9. Machine dimension (L*W*H): 16*5*2.6m
10. Machine weight: 50 tons

Optional Functions
1.Automatic reel changing, automatic loading and unloading
2.Ultrasonic dust removal
3.One-click focusing
4.Negative electrode laser V-cutting
5.Intelligent speed regulation
6.Multiple models available: single stacking machine, double-station stacking machine, cutting and stacking integrated machine
