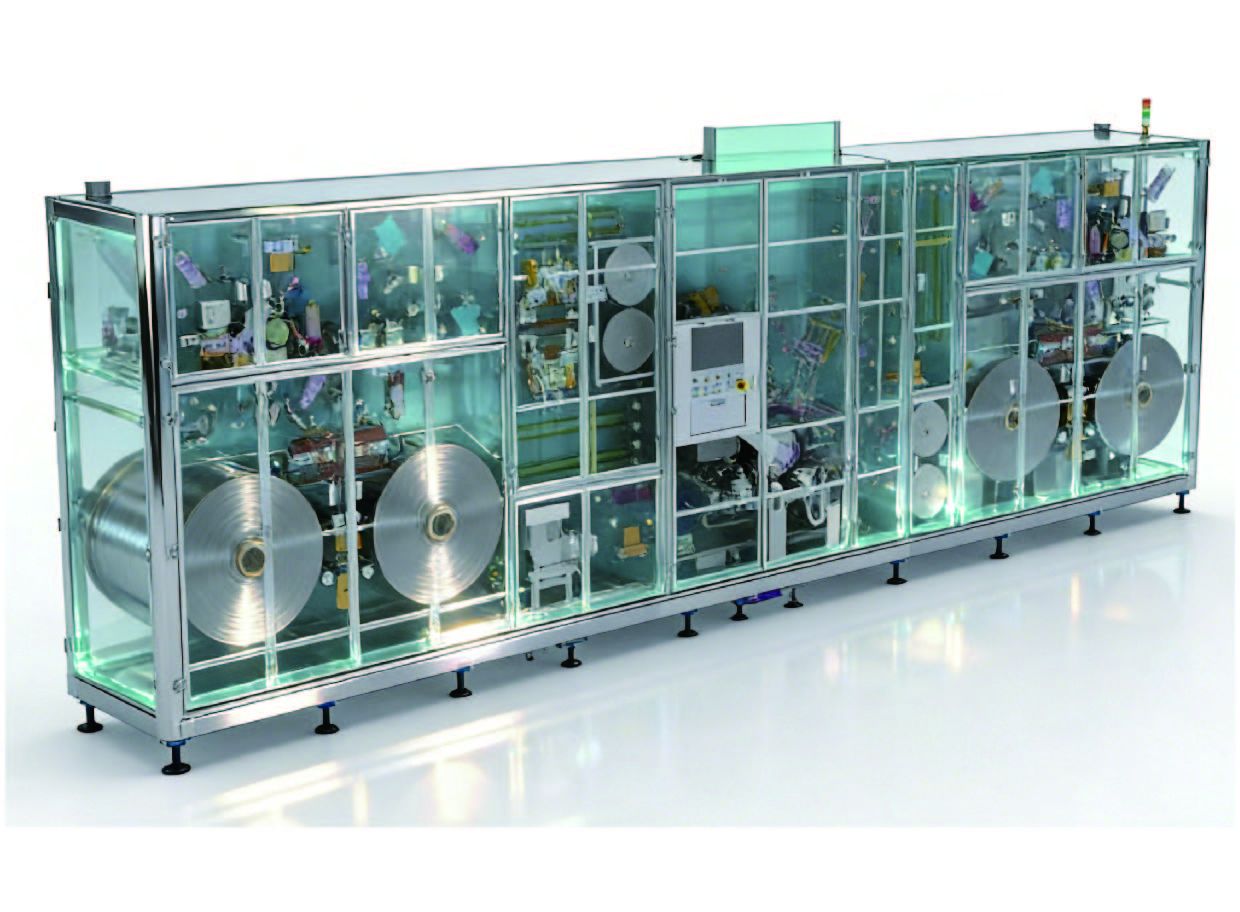

Laser Die-Cutting & Winding Integrated Machine－ Prismatic Cell& Pocuh Cell

· Product Description

This machine uses laser technology to continuously cut tabs from continuous coiled materials and wind them into cells.
Performance Indicators

1. Maximum compatible outer diameter: Φ1000mm for
　6-inch reel
2. Cutting dimensional accuracy: ≤±0.2mm
3. Efficiency: Die-cutting speed ≥90m/min,
　winding speed ≥2.5m/s
4. Product yield: ≥99.5%; failure rate ≤2%
5. Overhang alignment: ≤±0.3mm
6. Tab alignment: ≤±3mm, closed-loop product
　quality inspection
7. Winding tension fluctuation: ±3%
8. Machine dimension (L*W*H): 9.5*2.4*2.9m
9. Machine weight: 15 tons

Optional Functions
1.Automatic reel change, automatic taping, automatic loading and unloading
2.Ultrasonic dust removal
3.On-line thickness measurement, material status identification
4.One-click focusing
5.Automatic winding needle perimeter adjustment
6.Three-station or two-station winding needle
7.Tab alignment detection
