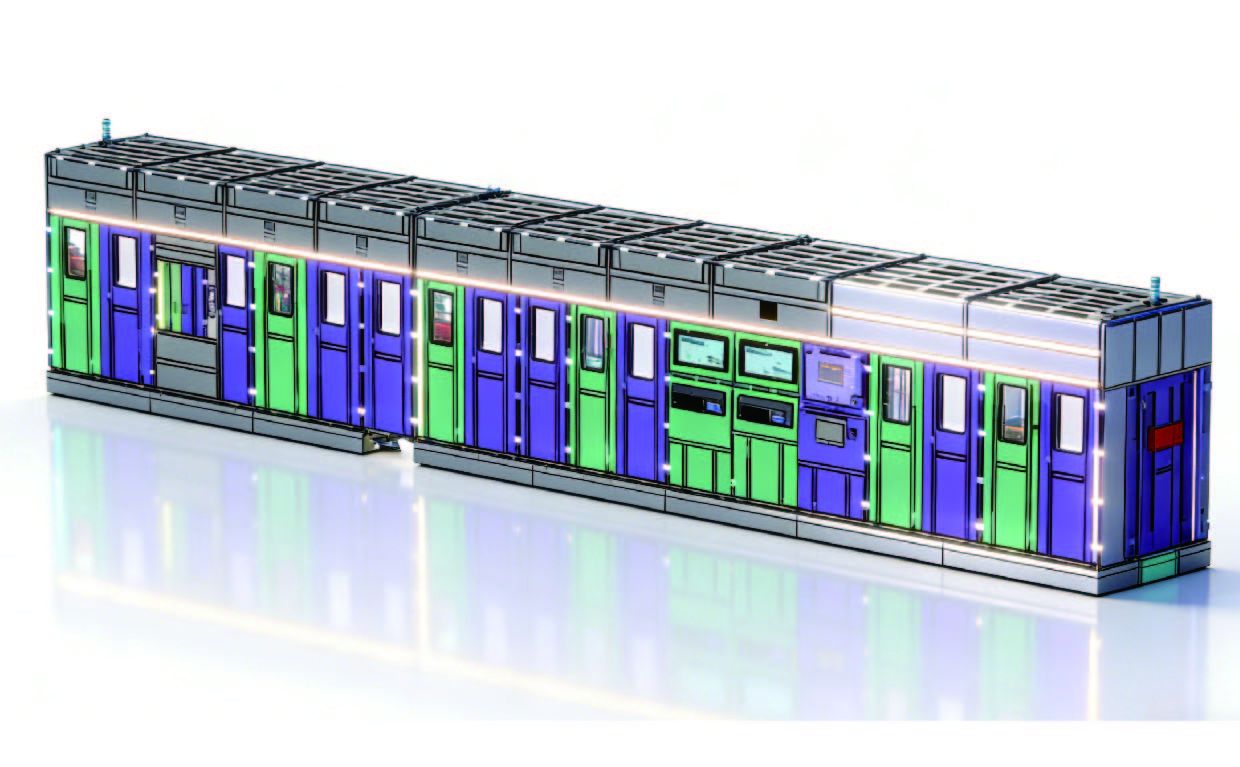

Solid-State Battery Final Sealing Machine

· Product Description

Upper and lower hot heads complete edge sealing between cell and residual air pouch, cut off redundant pouch entirely, followed
by cutting, folding and ironing to finish finished cells. Functions: automatic code scanning, fine sealing, precision cutting,
1st edge folding, 2nd edge folding, edge ironing, taping, weighing, edge voltage test, manual unloading and data traceback.

Technical Parameters
1. Clean cut without wire drawing at pouch trimming,
　precision cutting and corner cutting stations; sealing cutting
　tolerance: ±0.2 mm
2. Cutter service life ≥1,000,000 cuts, regrindable ≥15 times
3. Edge ironing temperature: 100~180℃, temp deviation ±3℃
4. Weighing accuracy: 0.01 g
5. CCD dimensional inspection accuracy: 0.05 mm
