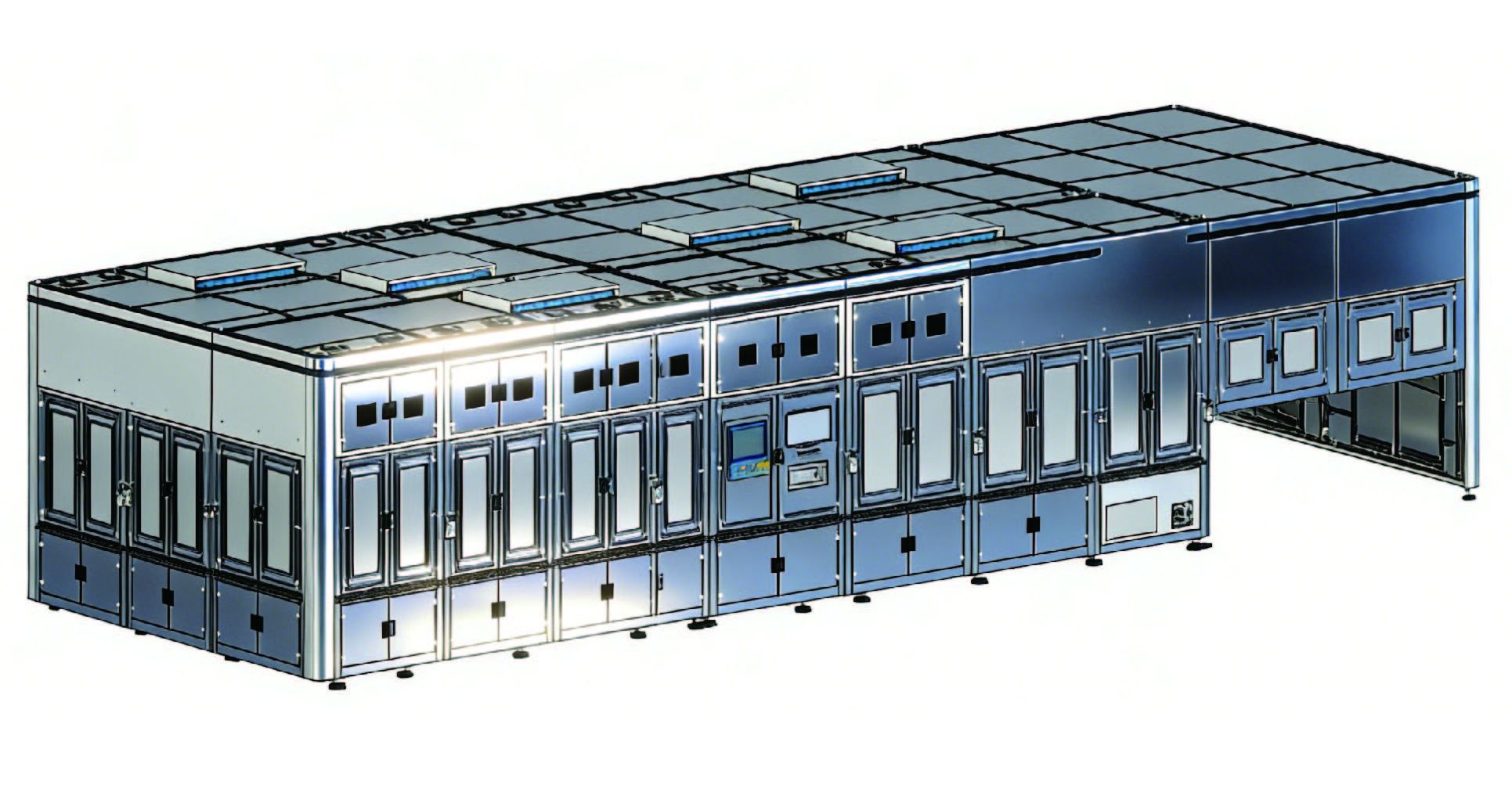

Solid-State Battery Stacking Machine

· Product Description

This machine realizes automatic Z-stacking, taping and discharging of lithium-ion battery cells. The separator is actively unwound
with a deviation correction mechanism to maintain stable and consistent tension, and delivered to the main stacking platform via a
constant tension system. Positive and negative electrodes are supplied by single-station vacuum suction. The system features automatic
material shortage detection and alarm, and effectively prevents double-sheet feeding. Robots pick electrodes from material boxes
respectively. After pre-positioning, electrodes are accurately stacked on the main platform. When reaching the preset number of layers,
stacking stops. The separator is cut by hot cutting, followed by automatic taping. Finally, the finished cell is transferred to the unloading
platform by robot for manual collection.

Technical Parameters
1. Production capacity: 0.6 seconds per piece
　(varies with electrode size)
2. Cell thickness: ≤30mm
3. Alignment tolerance between adjacent electrodes: ≤±0.2mm
4. Overall electrode alignment tolerance: ≤±0.5mm
5. Separator deviation correction tolerance: ≤±0.2mm
6. Positioning tolerance between electrode and separator: Electrode
　center offset ≤±0.3mm
7. Separator end face alignment tolerance: ±0.3mm
8. Stacking layers: Adjustable within the allowable thickness range
9. Tab direction: Same side / Opposite sides
10. Double-sheet detection rate: 99.99% via ultrasonic sensor
11. Separator cutting method: Hot cutting
12. Taping type & quantity: C-type taping; taping quantity adjustable
　per customer requirements
13. Operation availability: 98% (failures caused by the
　equipment only)
14. Product pass rate: ≥99.5% (defects caused by the equipment
　only, excluding incoming defective materials)
