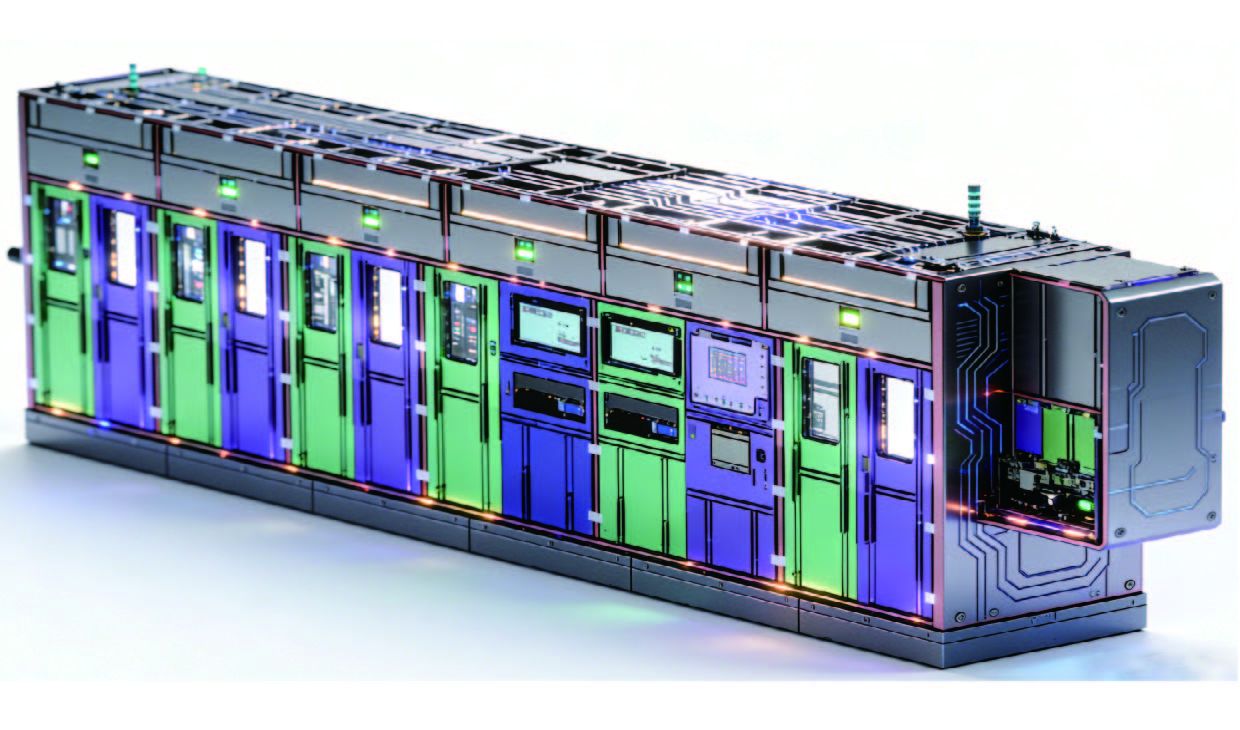

Solid-State Battery Welding Machine

· Product Description

This equipment is designed for ultrasonic welding of battery tabs. The workflow includes pre-welding tab inspection, cell code
scanning and feeding, positive tab pre-welding and cutting, negative tab pre-welding and cutting, post-welding shaping, positive
TAB welding, negative TAB welding, Hipot test, CCD inspection and finished cell discharging.

Technical Parameters

1. Cutting accuracy: ±0.1mm
2. Burr specification of protection sheet: Transverse burr ＜0.08mm,
　longitudinal burr ＜0.08mm
3. Welding position accuracy: Vertical deviation ±0.2mm,
　horizontal deviation ±0.2mm
4. Vertical alignment accuracy for taping: ±0.2mm
5. Cutter service life: Over 1,000,000 cuts per blade, regrindable
　for more than 20 times
6. Inspection accuracy: Dimensional accuracy ±0.05mm, angular
　accuracy 15 arcseconds
