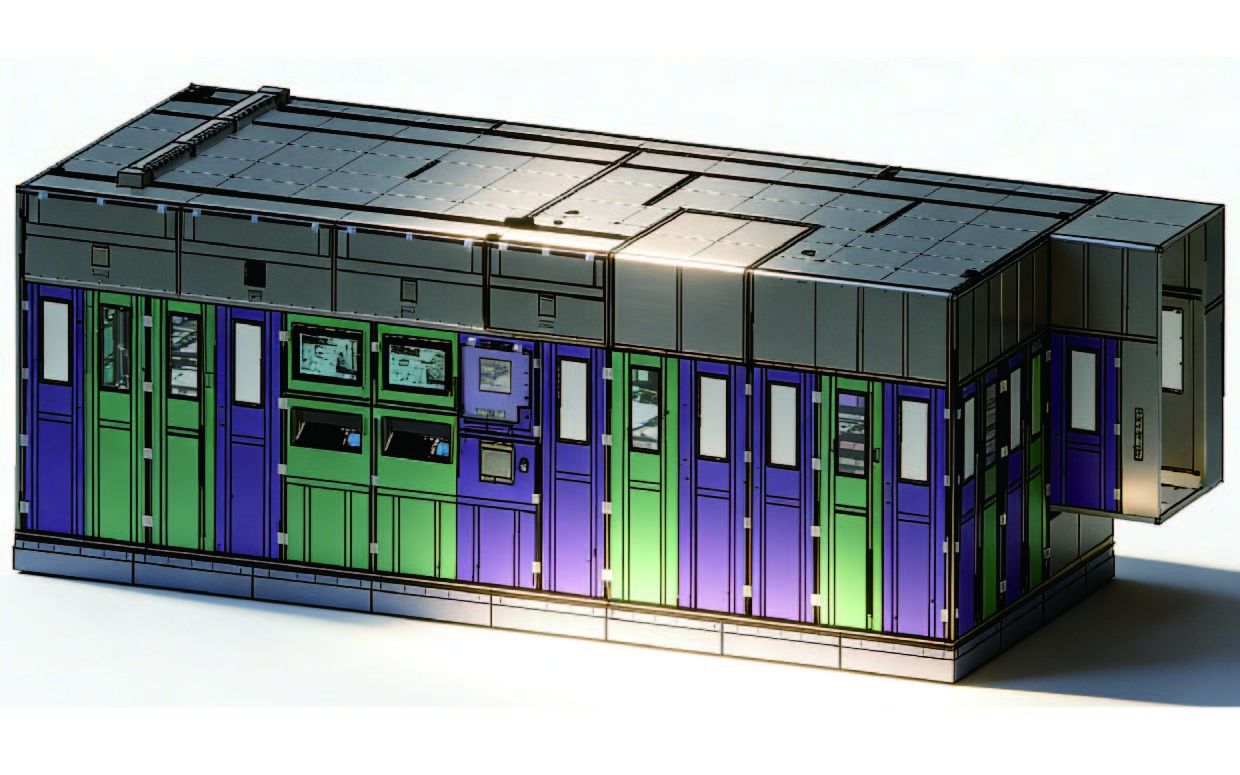

Solid-State Battery Sealing Machine

· Product Description

This forming and top & side sealing machine automatically forms aluminum plastic film into pouches and places cells inside. Main
functions: cell feeding and positioning, cell pouch loading, aluminum plastic film feeding, unwinding and deviation correction,
preheating and forming, film cutting, film and shell conveying, film folding, top cutting, top sealing, corner sealing, side sealing,
side cutting, Hipot test, inkjet marking, code scanning, defective product rejection and automatic palletizing & discharging.

Technical Parameters
1. Tension range: 0-100N, tension control accuracy ±3N
2. Deviation correction accuracy: ±0.1mm
3. Roll diameter detection accuracy: ±0.1mm
4. Preheating temperature: 0-150℃ adjustable, temperature
　tolerance ±3℃; preheating time 0-6s adjustable
5. Forming die service life: Over 15,000,000 operations,
　regrindable for more than 20 times
6. Sealing head temperature: 0～250℃ adjustable, overall
　temperature deviation ≤±3℃ during operation
7. Sealing pressure range: 0-20 kgf/cm²
8. Sealing time: 0～8s adjustable, adjustment precision 0.1s
9. Sealing thickness tolerance: ±10µm, detection accuracy ≤±1µm
