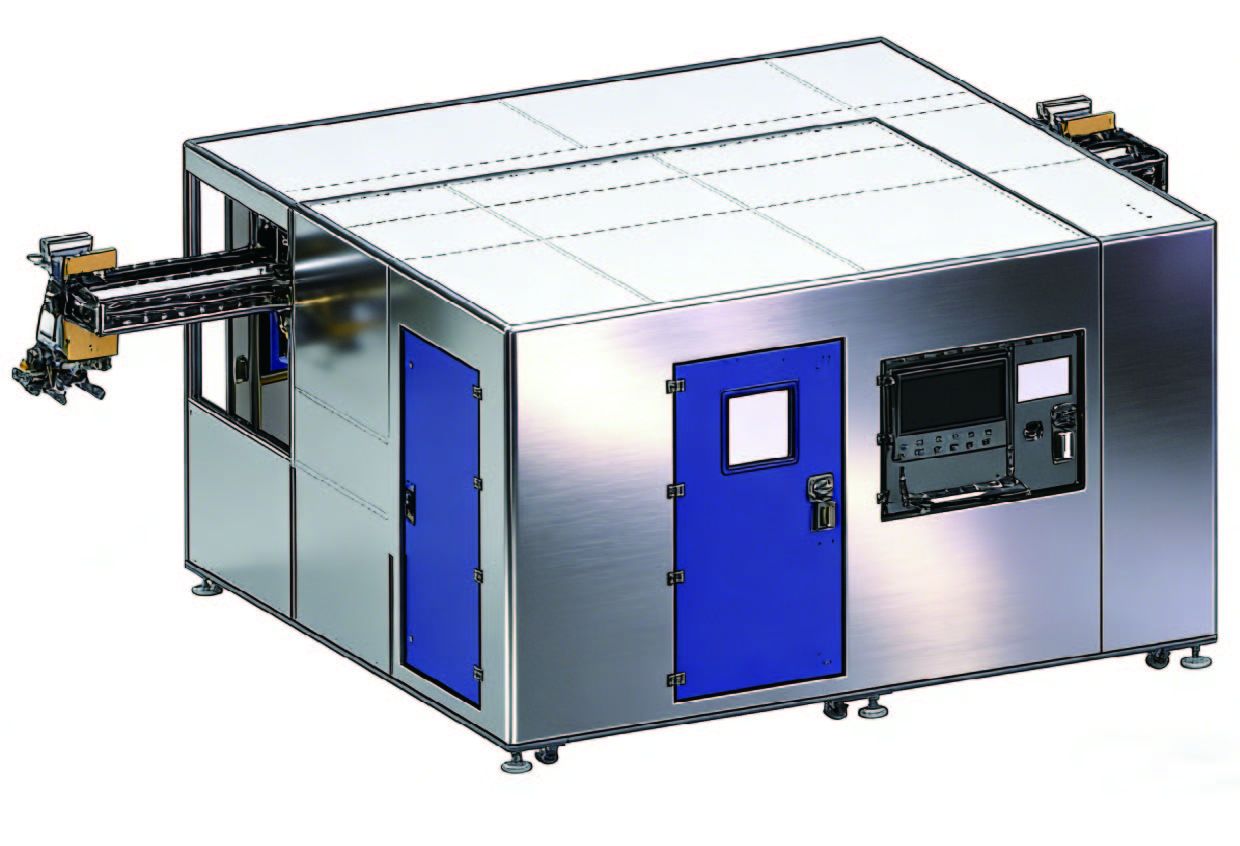

Solid-State Battery X-Ray Inspection Machine

· Product Description

This online automatic X-Ray inspector is deployed in battery assembly lines. It emits X-rays to penetrate bare cells and trays,
captures internal images and judges product quality automatically. It mainly inspects stacking alignment, surface defects and
four-corner overhang of cells, with automatic buffering for NG products. Code scanning enables product traceability, and
inspection data is automatically uploaded to MES.

Technical Parameters

1. Production capacity: Customized as required
2. Product yield: ≥99.5%
3. Equipment failure rate: ≤2%
4. Repeat measurement accuracy: 40μm (tested with
　standard sample)
5. Tube voltage range: 40~90KV / 40~130KV
6. Inspection items: Weighing, corner overhang, surface
　wrinkles, tab creases
7. False rejection rate: ≤1.5%
8. Escape rate: 0%
9. Radiation safety standard: ≤1μSV/hr
10. Tube current range: 10~200μA / 10~300μA
