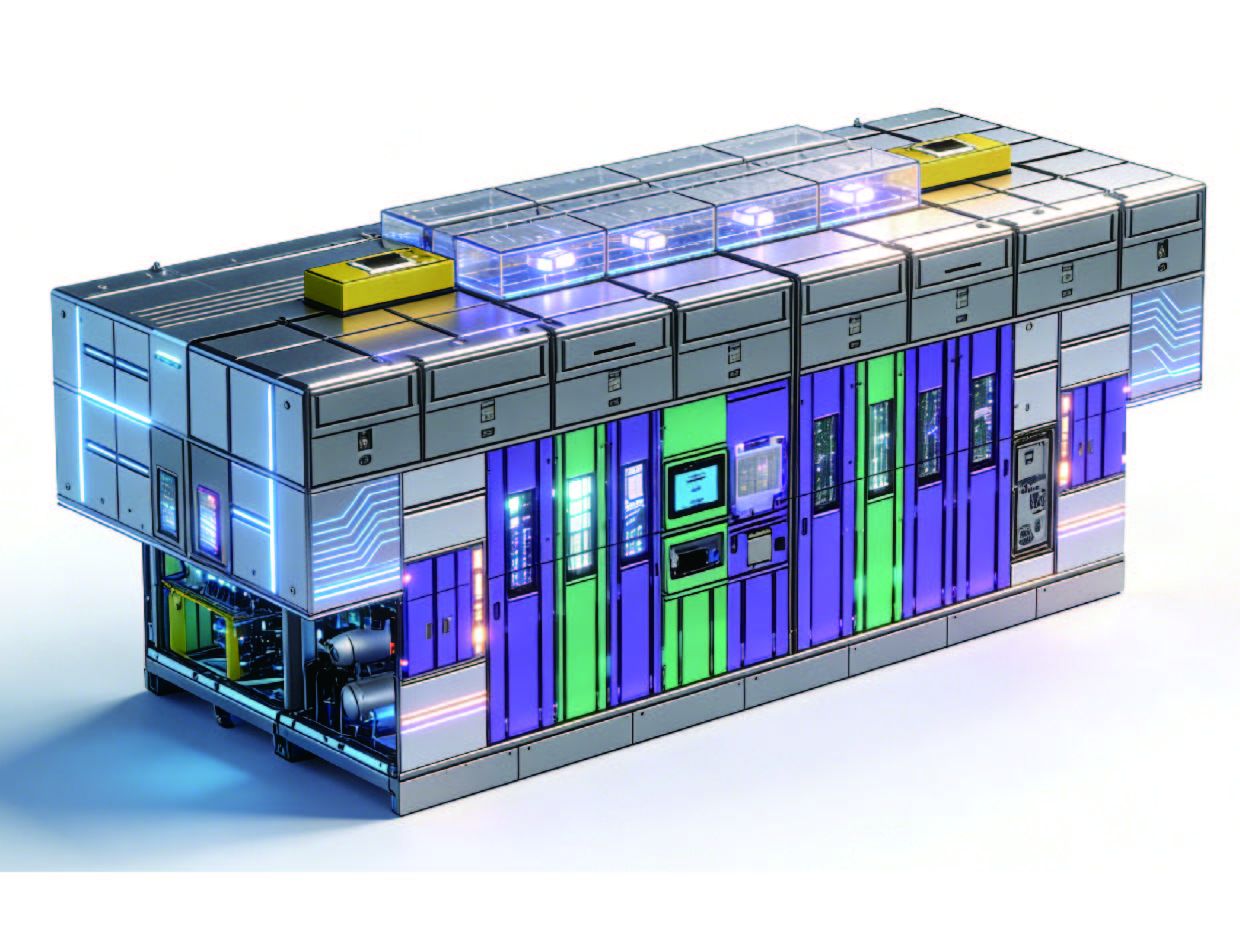

Solid-State Battery Hot Pressing Machine

· Product Description

This hot & cold press is used in solid-state battery assembly for hot pressing and shaping of stacked cells. It integrates automatic
cell code scanning, feeding, hot pressing and Hipot test, as well as defective product rejection. Hot pressing temperature, pressure,
duration and Hipot test parameters & results are linked with barcodes and uploaded to the MES system.

Technical Parameters
1. Platen pressure: 1000-20000 kgf, tolerance: ±5%
2. Parallelism between platens: ≤±0.1mm; Flatness: ≤±0.05mm
　for uniform cell pressing
3. Adjustable hot pressing temperature: 50℃~130℃, temperature
　control accuracy: ±3℃
4. Test voltage (mBx): 1~1000V; Test time range: 0~5s; Pressure
　for insulation test platen: 0-0.5T
5. Product yield: ≥99.5%
6. Production capacity: Customized as required
7. Equipment failure rate: ≤2%
8. Cleanliness class inside equipment: Class 100,000
