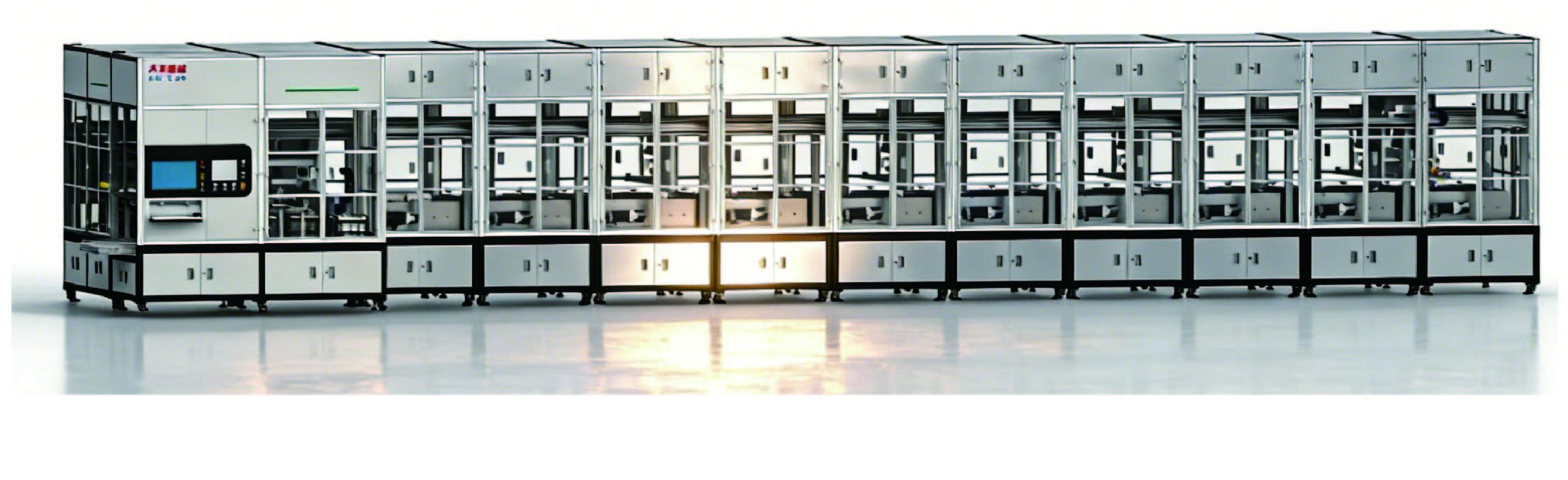

Pouch Cell Testing Equipment

· Product Description

This system enables seamless connection and operation scheduling for automatic palletizing, depalletizing, formation, capacity
grading, high-temperature aging, normal-temperature aging, OCV test and DCIR test of lithium cells.

Machine dimension (L*W*H): 2500*1300*2700mm (subject to actual layout)
Machine weight: 6 tons

Technical Parameters
1. Stable pressure between laminates with deviation
　within ±10kg
2. Excellent temperature uniformity of laminates with
　deviation within ±2℃
3. Overall operational pass rate ≥99.98%
4. Jacket shaping solution available for large pouch cells
5. Optional hot pressing fixtures for single-side or double-
　side tabs
