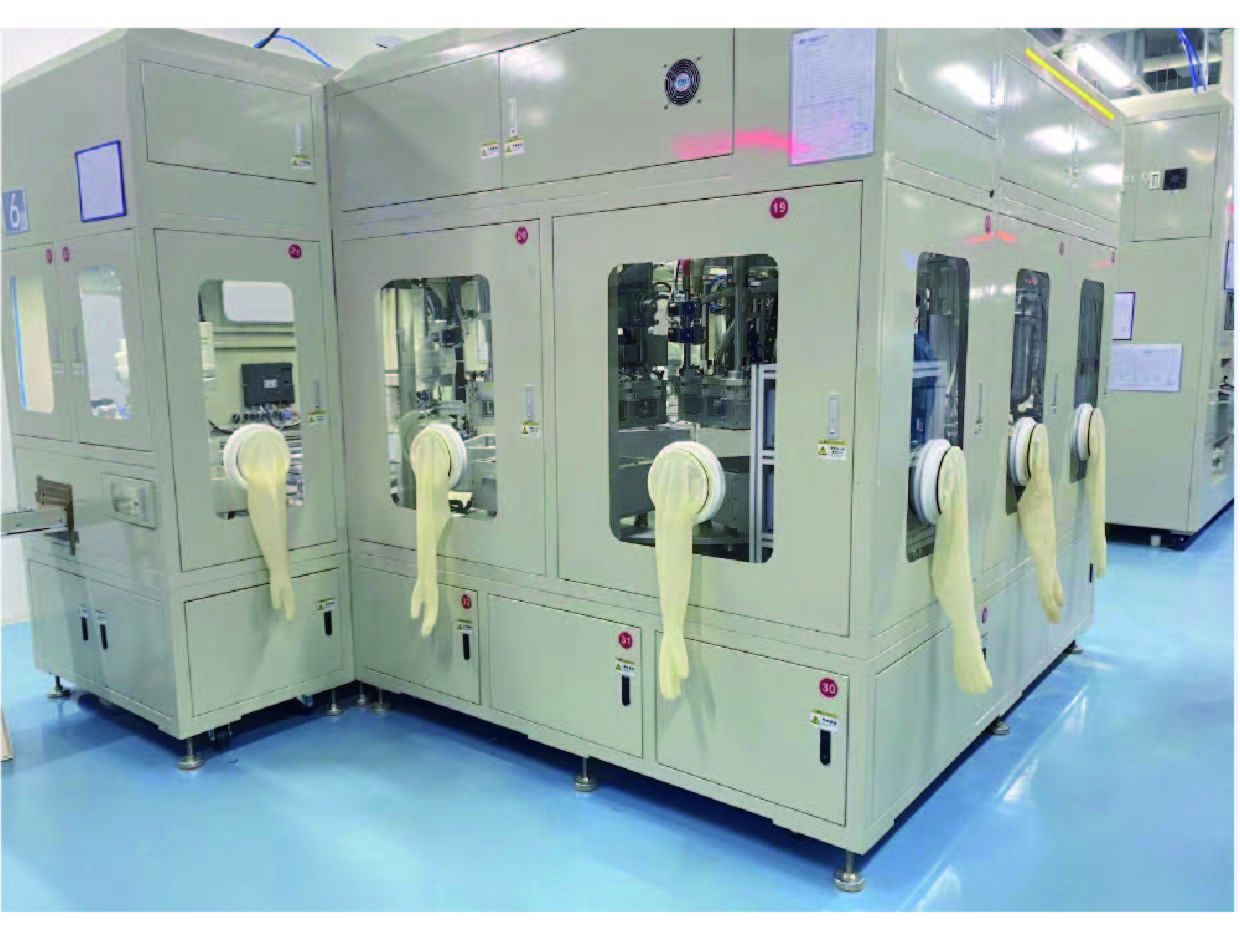

Pouch Cell Electrolyte Filling Machine

· Product Description

This machine is designed for fully automatic electrolyte filling of pouch cells. It connects with upstream and downstream
conveyor lines, and completes robotic pick-and-place & rotation, pre/post scanning and weighing, tray fixture positioning,
automatic opening & electrolyte filling, cyclic vacuum standing and automatic sealing.

Machine dimension (L*W*H): 6500*3500*2400mm (Small pouch rotary type, subject to actual layout)
　9500*1500*2400mm (Large pouch inline type, subject to actual layout)
Machine weight: Over 10 tons

Technical Parameters
1. Designed capacity: 15~25 PPM (Small pouch rotary type);
　8~15 PPM (Large pouch inline type)
2. Filling mode: Vacuum filling; Standing mode: Vacuum standing
3. Filling volume: 1~50g (Small pouch); 10~800g (Large pouch)
4. Filling accuracy: ±1.5g for volume below 200g, ±0.8%
　for volume above 200g
5. First-pass yield: ≥99.5%; Failure rate: ≤2%
6. Operation availability: ≥95%
