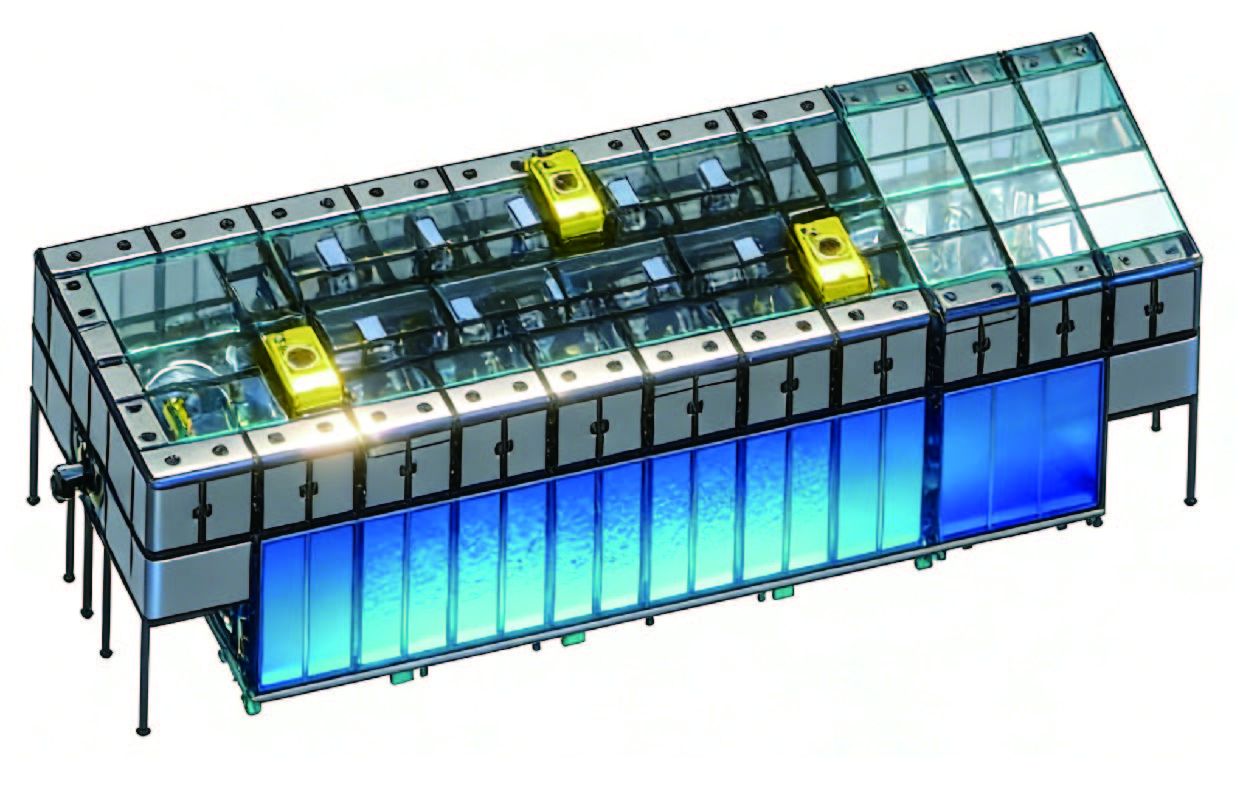

Pouch Cell Flat Press & Hi-pot Tester

· Product Description

This equipment is applied to the hot pressing process of pouch cells, performing hot pressing shaping and Hi-pot test on wound and
stacked cells. It integrates automatic loading, hot pressing shaping, Hi-pot test, automatic unloading and data traceability functions.

Machine dimension (L*W*H): 13000*4300*3500mm
Machine weight: 54 tons

Technical Parameters
1. The lower press plate adopts clearance design. A hot-pressing
　paper unit covers the plate to avoid indentation. The upper hot
　plate is coated with special material and equipped with jacking
　mechanism to prevent cells from sticking during hot pressing.
2. Flatness of upper and lower hot plates: 0.05mm
3. Hot plate temperature range: Ambient temperature ~ 120℃,
　temperature accuracy: ±5℃
4. Temperature sensors monitor and regulate temperature
　during operation.
5. Adjustable pressing force: up to 10 tons. Accuracy: ±100kgf
　below 5000kgf; ±150kgf within 5000kgf~10000kgf. Multi-step
　adjustable pressing speed.
6. Built-in short-circuit test system
7. Test voltage: DC 0~500V (adjustable)
8. Test duration: 190 seconds
9. Maximum displayed resistance: ＞9999MΩ
10. The Hi-pot test unit descends for testing only after cells are
　fully clamped to prevent displacement of outer electrodes.
11. Equipment failure rate: ≤2%; Product yield: ≥99.5%
