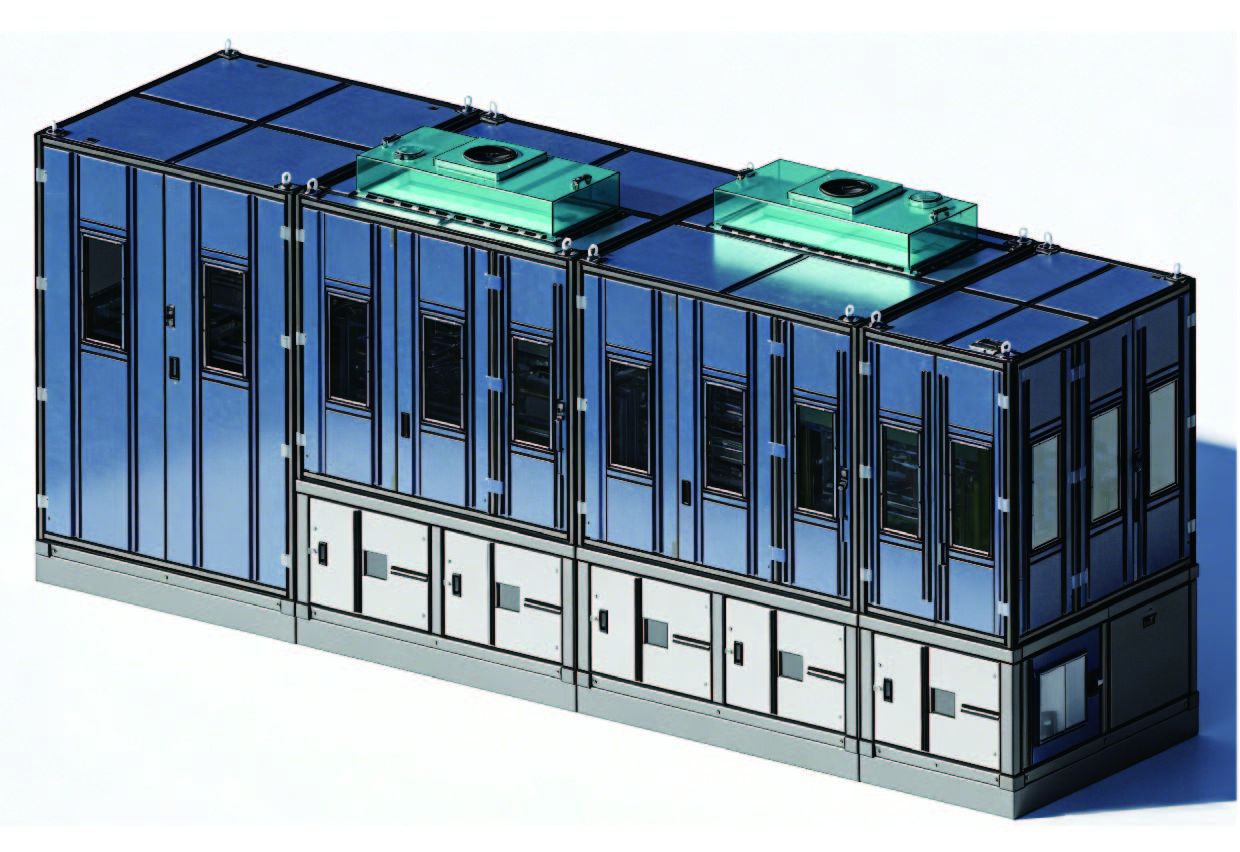

Pouch Cell Sealing Machine

· Product Description

This machine is designed for pouch lithium batteries. Processes include automatic aluminum plastic film forming, double
trimming on top edge, automatic shell loading, CCD positioning & inspection, NG cell rejection, servo top sealing,
corner sealing, servo side sealing, tab high voltage withstand test, negative tab-to-shell high voltage withstand test,
side trimming, inkjet marking, code scanning, CCD inspection for exposed film, defective product sorting and single
cell output to conveyor belt.

Machine dimension (L*W*H): 7500*2600*2400mm
Machine weight: 8 tons

Technical Parameters
1. Aluminum plastic film deviation correction
　accuracy: ±0.2mm
2. Drawing depth: 1.2-6.0mm, accuracy: ±0.1mm
3. Folding line accuracy of aluminum plastic film: ±0.1mm
4. Cell shell insertion: CCD positioning accuracy ±0.1mm,
　overall insertion accuracy ±0.15mm
5. Sealing type: rigid sealing. Sealing head material: H62 brass with
　good thermal conductivity and thermal deformation resistance
6. Cell height after sealing: ±0.2mm; misalignment of aluminum
plastic film after sealing ≤0.5mm
7. Top sealing pressure: 80kgf~350kgf; side sealing pressure:
　80kgf~350kgf. Real-time pressure feedback and alarm. Driven
　by servo motor, adjustment accuracy: 1kgf
8. Sealing temperature: 150℃~250℃, temperature control
　accuracy: ±3℃; adjustment increment: 1℃, actual temperature
　deviation: ±3℃
9. Service life of all cutting blades: ≥1,000,000 cuts. No obvious
　burrs or drawing on film cuts.
10. Product yield: ≥99%; Equipment operation availability: ≥95%
　Images are for reference only, subject to actual products.
