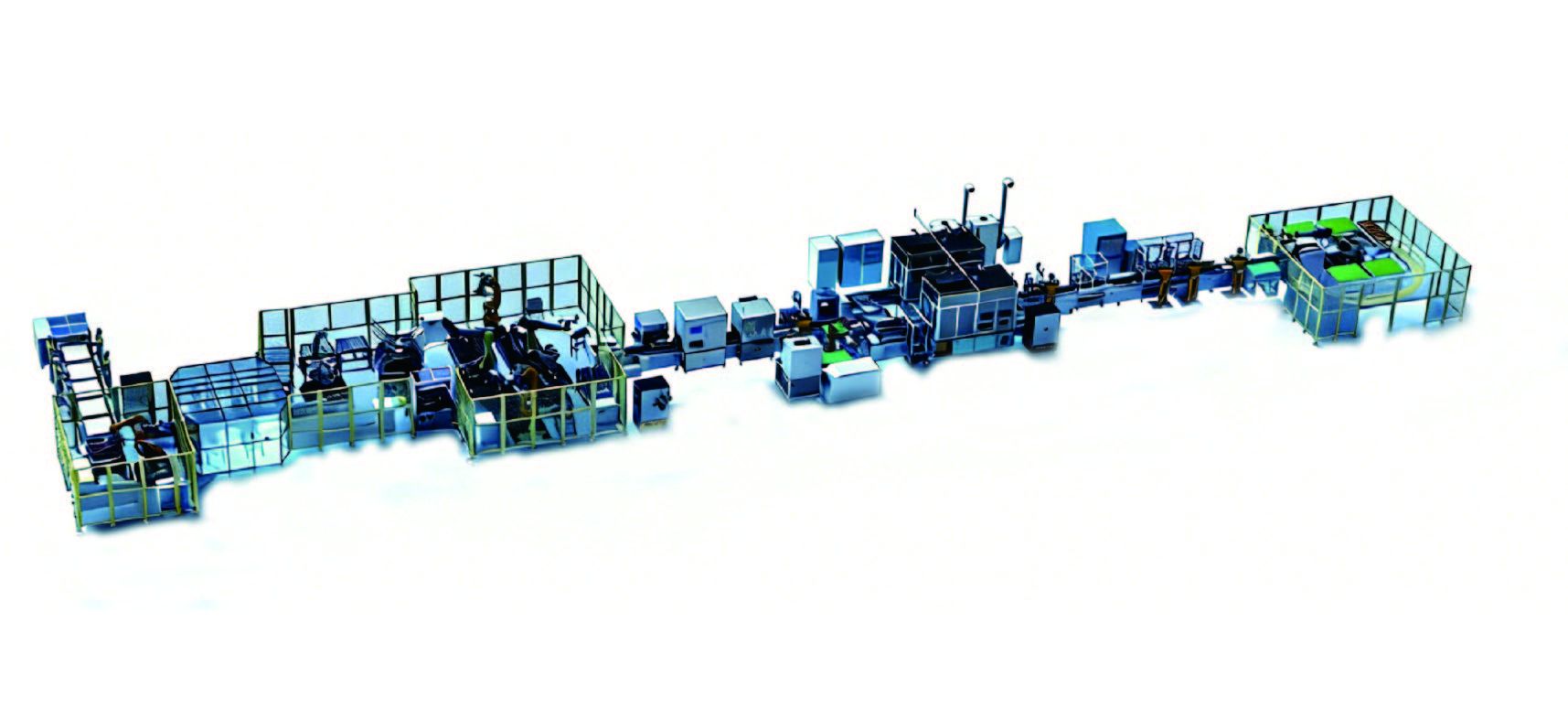

Prismatic Aluminium Shell Module Automatic Line (Power Battery)

· Product Description

Only 7 operators required for the full automatic line with total length over 50 meters. Process stations include automatic tray
feeding, cell scanning & inspection, formula-based cell feeding, automatic insulation taping, cell stacking, automatic module
assembly, module marking, barcode data binding, module insulation test, pre-welding CCD positioning for Busbar, terminal
flatness inspection, sensor welding, Busbar automatic pressing & positioning, CCD positioning welding, post-weld inspection,
EOL test, top cover fitting, automatic unloading and full-line MES system.

Technical Parameters

1. Main flow: Component assembly → Side plate welding →
　Heating & aging → BSB welding
2. Takt upgrade history: 60s/Module → 40s/Module → 30s/Module
　→ 25s/Module → 15s/Module
3. Production output: 24 PPM, Pass rate: 99.95%
4. Overall dimension(L×W×H): 63m×10m×3.5m
5. Total equipment weight: 60 tons
