Blade Battery PACK Intelligent Complete Production Line (Power Battery)

· Product Description

1. Turnkey full-line solution covering from cell feeding to finished PACK unloading.
2. AGV trolley for PACK housing conveying to cut manual workload and secure stable productivity.
3. Optimized for long & thin blade cell feature: modules stacked on dedicated pallets to minimize cell transfer times, improve
　dimensional consistency and finished yield.
4. Innovative welding clamping process with independent correction for each busbar to lift welding yield.
5. All delivered blade module production lines are running in stable mass production.
6. Production capacity: 13 JPH (Max PACK:2200×1700×150 mm); 30 PPM (Max single cell:700×140×30 mm)

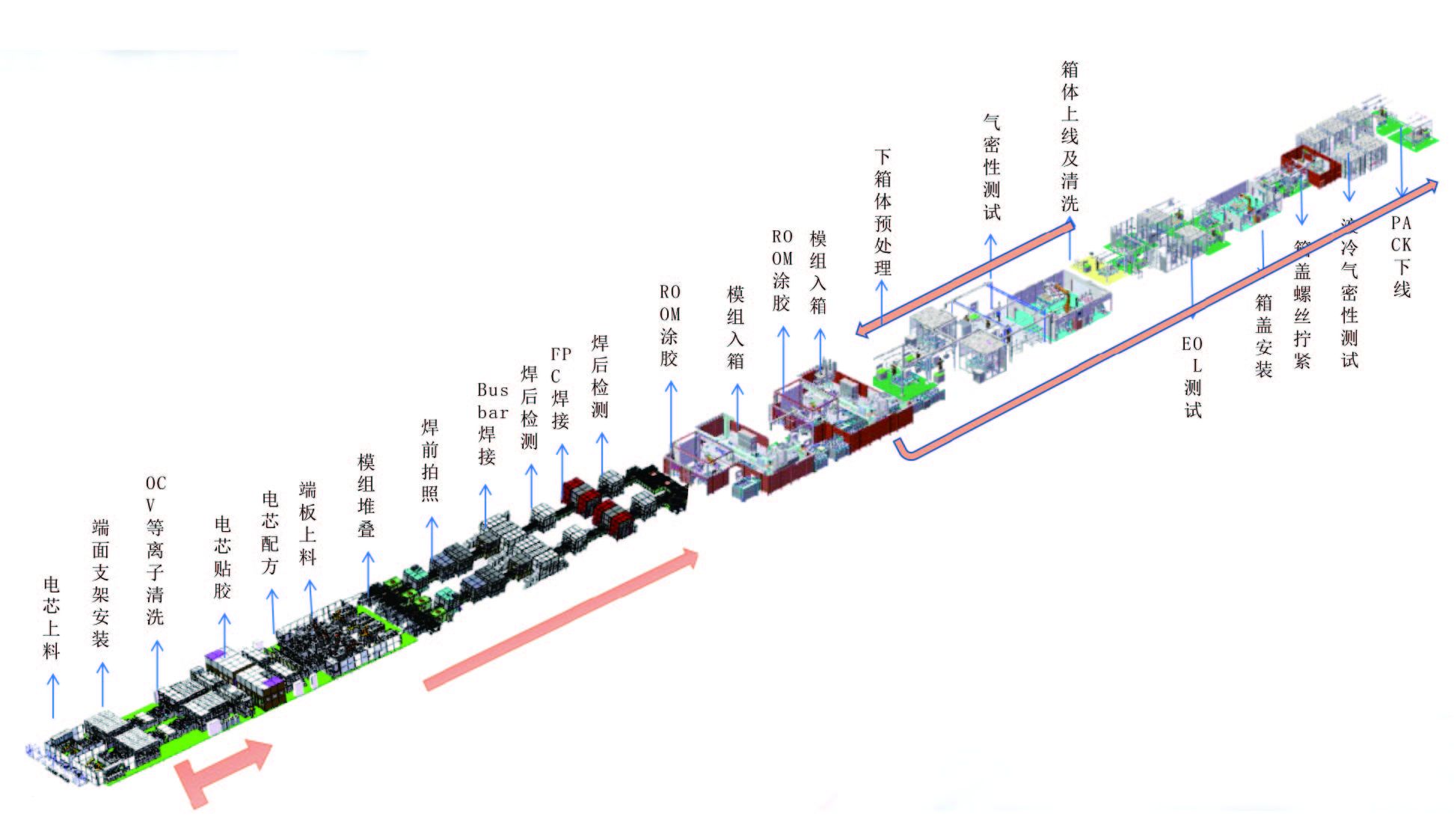

Process Flow:

① Cell feeding ② End bracket fitting ③ OCV test & plasma cleaning ④ Cell taping ⑤ Cell Sorting ⑥ End Plate Feeding ⑦ Module Stacking ⑧ Pre-Welding Inspection ⑨ Busbar Welding ⑩ Post-Welding Inspection ⑪ FC Welding ⑫ Post-Welding Inspection ⑬ Room Dispensing ⑭ Module Loading into Housing ⑮ Room Dispensing ⑯ Module Loading into Housing ⑰ Lower Housing Pre-Treatment ⑱ Air Tightness Test ⑲ Housing Feeding & Cleaning ⑳ EOL Test ㉑ Top Cover Installation ㉒ Cover Bolt Tightening ㉓ Liquid Cooling Air Tightness Test ㉔ PACK Offline
