Prismatic Cell-Construction Machinery PACK Intelligent Complete Production Line (Power Battery)

· Product Description

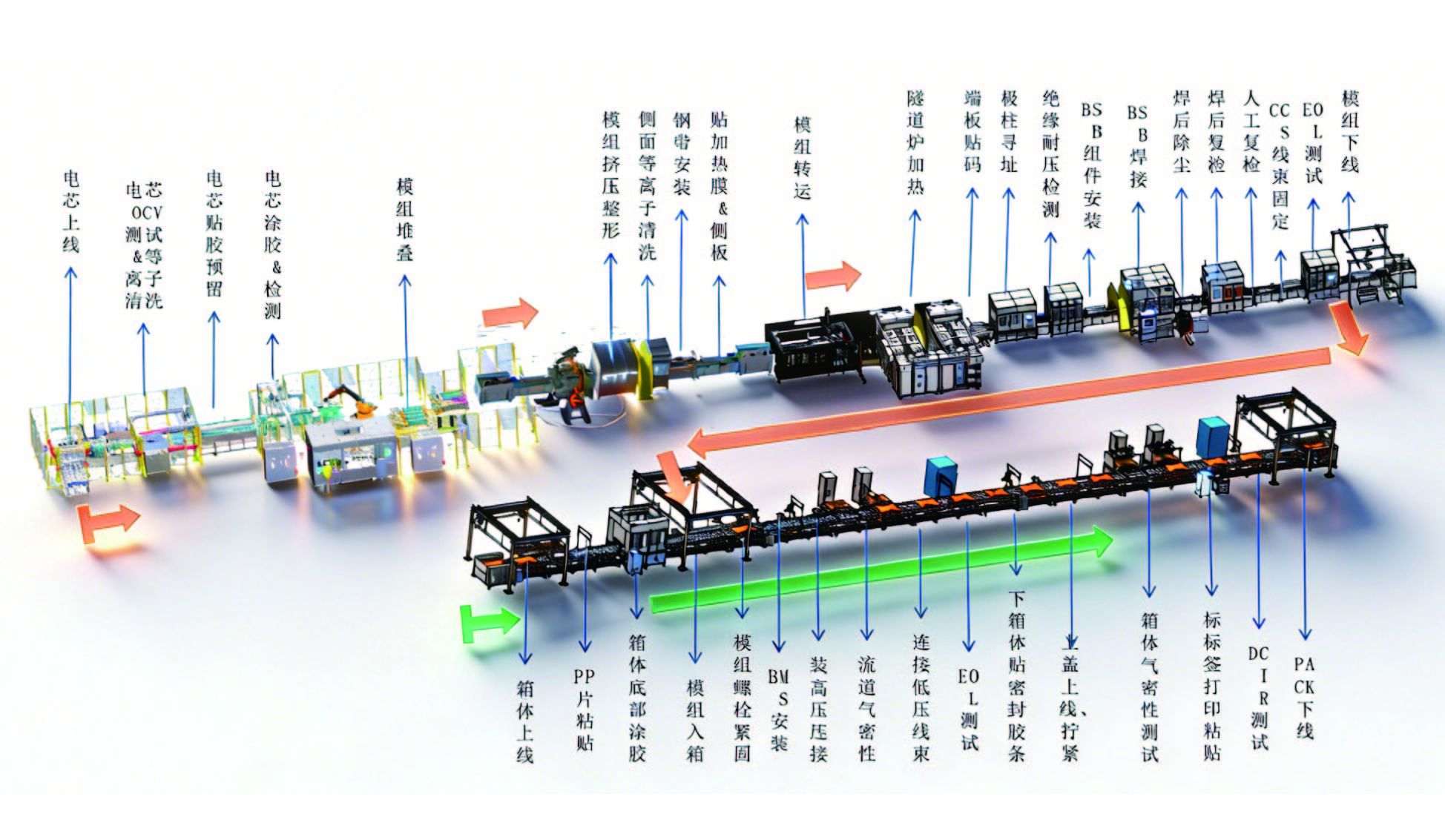

Process Flow:

① Cell Loading ② Cell OCV Test & Plasma Cleaning ③ Cell Pre-taping Positioning ④ Cell Gluing & Inspection ⑤ Module Stacking ⑥ Module Compression Shaping ⑦ Side Plasma Cleaning ⑧ Steel Belt Mounting ⑨ Heating Film & Side Plate Pasting ⑩ Module Transfer ⑪ Tunnel Oven Heating ⑫ End Plate Labeling ⑬ Terminal Positioning ⑭ Withstand Voltage & Insulation Test ⑮ BSB Component Assembly ⑯ BSB Welding ⑰ Post-welding Dust Removal ⑱ Post-welding Inspection ⑲ Manual Re-inspection ⑳ CCS Wire Harness Fixing ㉑ EOL Test ㉒ Module Unloading ㉓ Box Loading ㉔ PP Sheet Pasting ㉕ Box Bottom Gluing ㉖ Module Loading into Enclosure ㉗ Module Bolt Tightening ㉘ BMS Installation ㉙ High-voltage Crimping Assembly ㉚ Cooling Channel Air Tightness Test ㉛ Low-voltage Wiring Connection ㉜ EOL Test ㉝ Lower Box Sealing Strip Mounting ㉞ Top Cover Loading & Bolt Fastening ㉟ Box Air Tightness Test ㊱ Label Printing & Pasting ㊲ DCIR Test ㊳ PACK Finished Product Unloading
