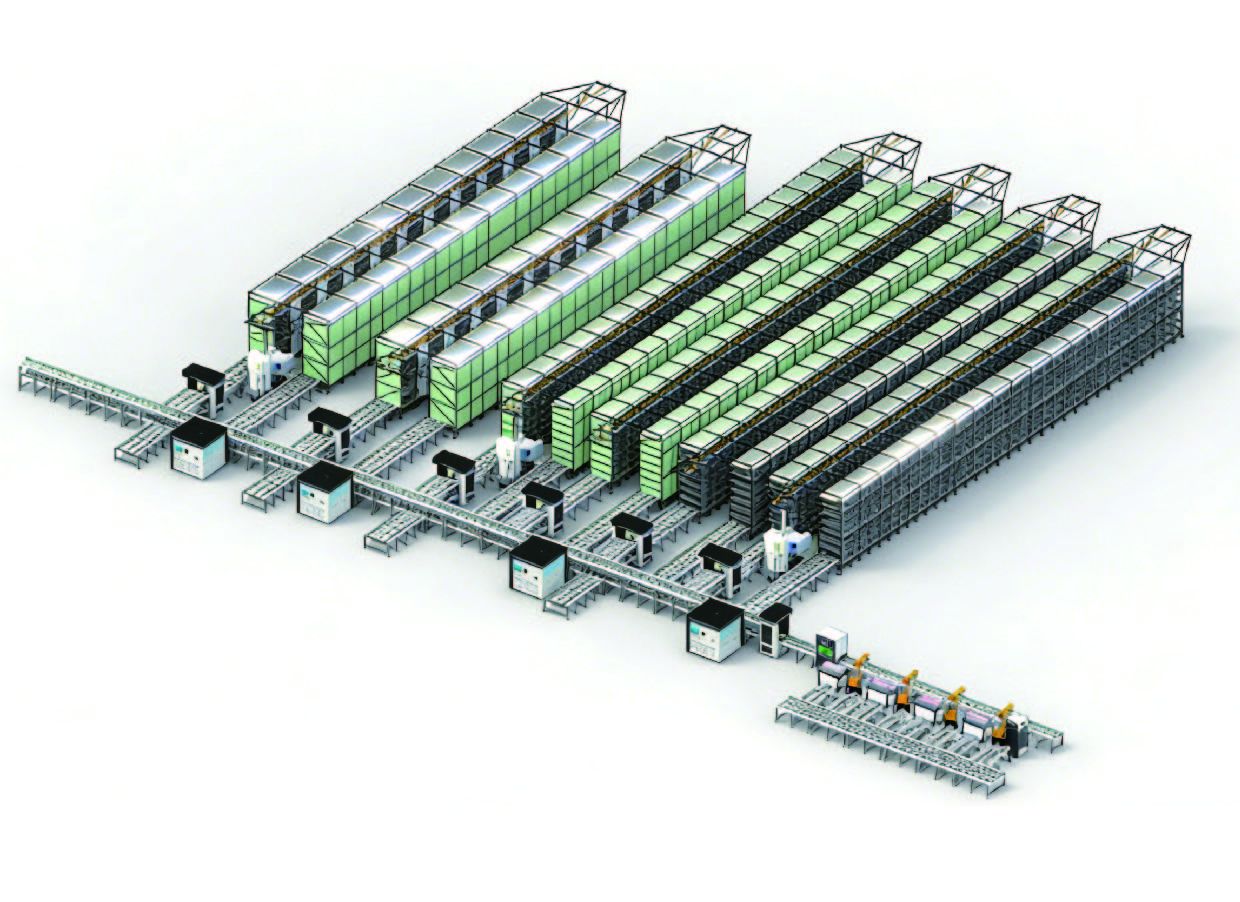

Blade Battery Back-End Testing System

· Product Description

This system realizes seamless connection and operation scheduling for automatic palletizing, depalletizing, pin pulling, pin
inserting, formation, capacity grading, high-temperature soaking, normal-temperature soaking, OCV test and DCIR test of
lithium batteries.

Technical Parameters

1. Current & voltage accuracy: ±(0.05%RD + 0.05%FS)
2. System charging efficiency ≥80%, feedback efficiency ≥75%
3. Overall Dimension (L×W×H): 20000mm×50000mm×7000mm
　(subject to actual layout)
4. Machine weight: Over 50 tons (subject to actual design)
