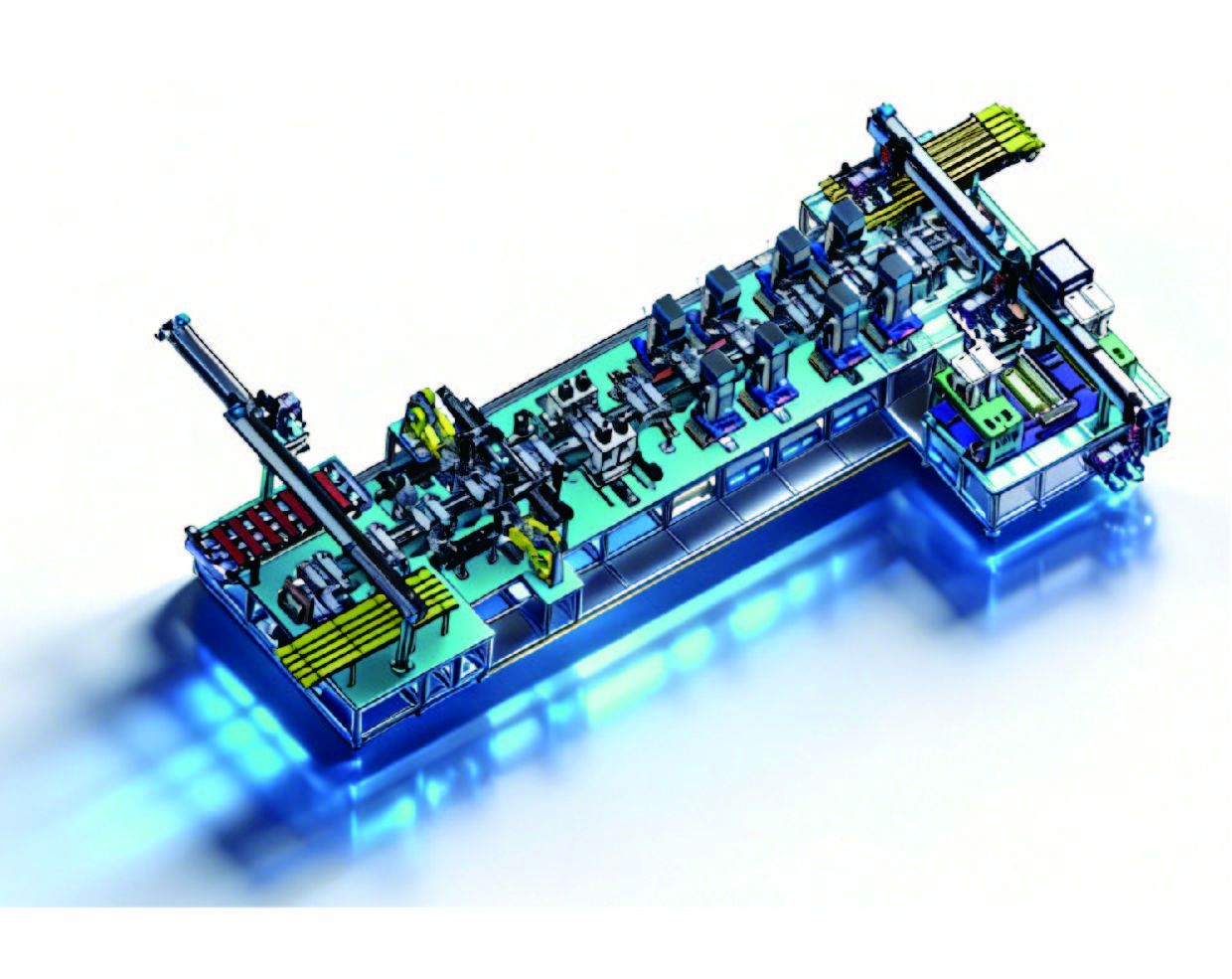

Blade Battery Assembly - Ultrasonic Pre-welding & Cutting Machine

· Product Description

This equipment adopts ultrasonic welding to pre-weld cell tabs and shape them into required forms. It integrates feeding &
discharging conveyor, code scanning, Hipot test & thickness measurement, CCD inspection for tab folding (including folding
of outermost positive/negative tabs, separator and electrode plates), ultrasonic pre-welding (flat tooth welding process),
tab cutting, welding mark taping and post-welding CCD inspection.

Final yield: ≥99.5% (excluding incoming defects)
Failure rate: ≤2% CMK (welding tensile force): ＞1.67
Production capacity: ≥16 PPM
