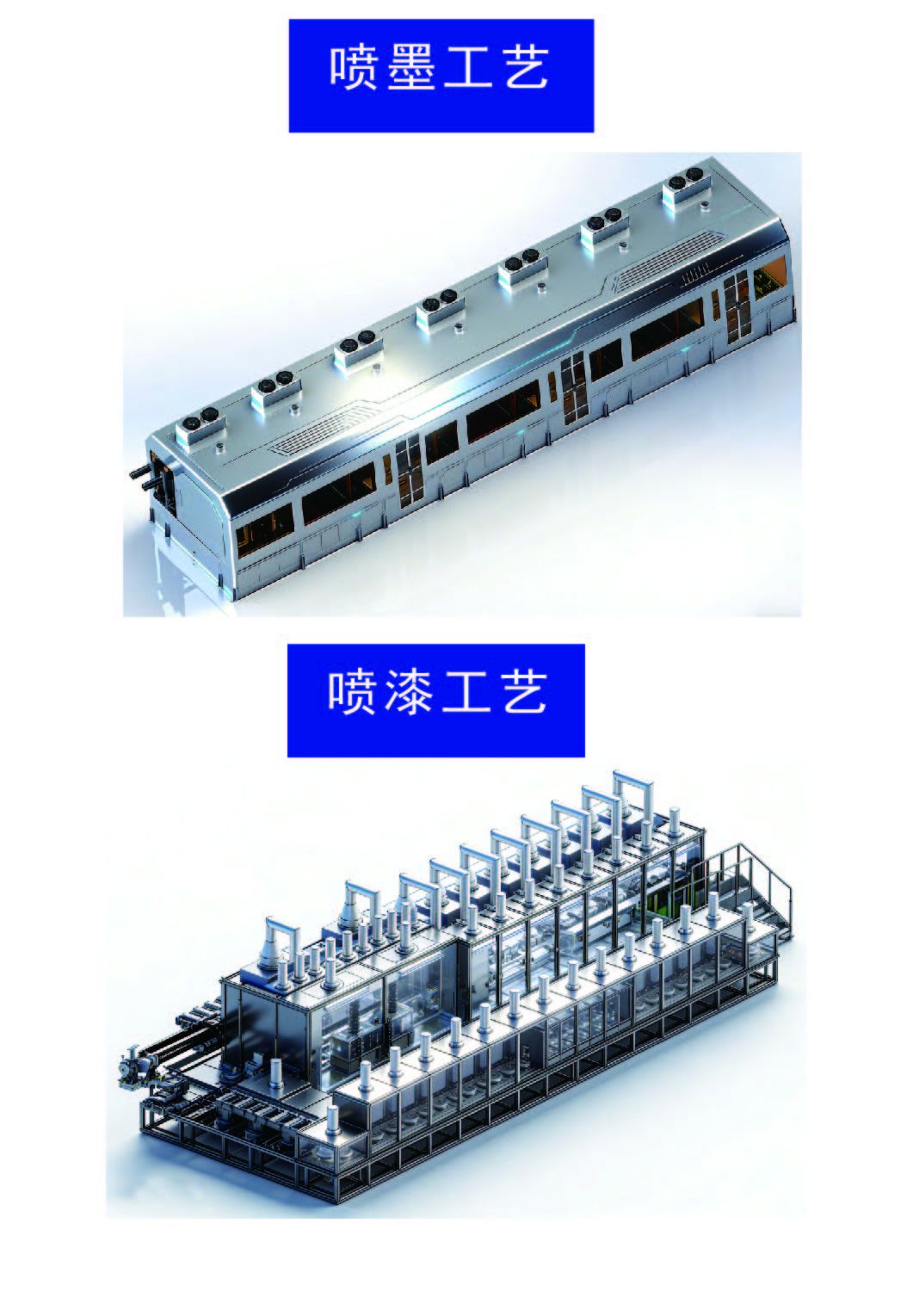

Blade Battery Assembly - Automatic UV Insulation Coating Machine

· Product Description

Specially developed for lithium batteries, this automated UV coating equipment integrates high-precision spraying, UV curing
and advanced automatic control systems. It delivers uniform and smooth insulation coatings with excellent electrical insulation
performance.

Technical Parameters
1. Cycle rate: 1 PPM~20 PPM (single lane)
2. Downtime rate (DT): ≤2.0%
3. First-pass yield: ＞99.99%
4. Integrated dimensional, insulation and film thickness
　testing functions
5. Eco-friendly UV coating compliant with ROHS and REACH
　standards, solvent-free and non-corrosive
6. High shear resistance: UV coating shear strength ≥10 MPa
7. Strong adhesion: UV coating adhesion ≥80 N/m
8. Acid, alkali and high voltage resistance: Withstands AC 2230V
　and DC 4000V
9. Long service life: No blistering on coating with high yield; UV
　coating resists degradation for extended service life
