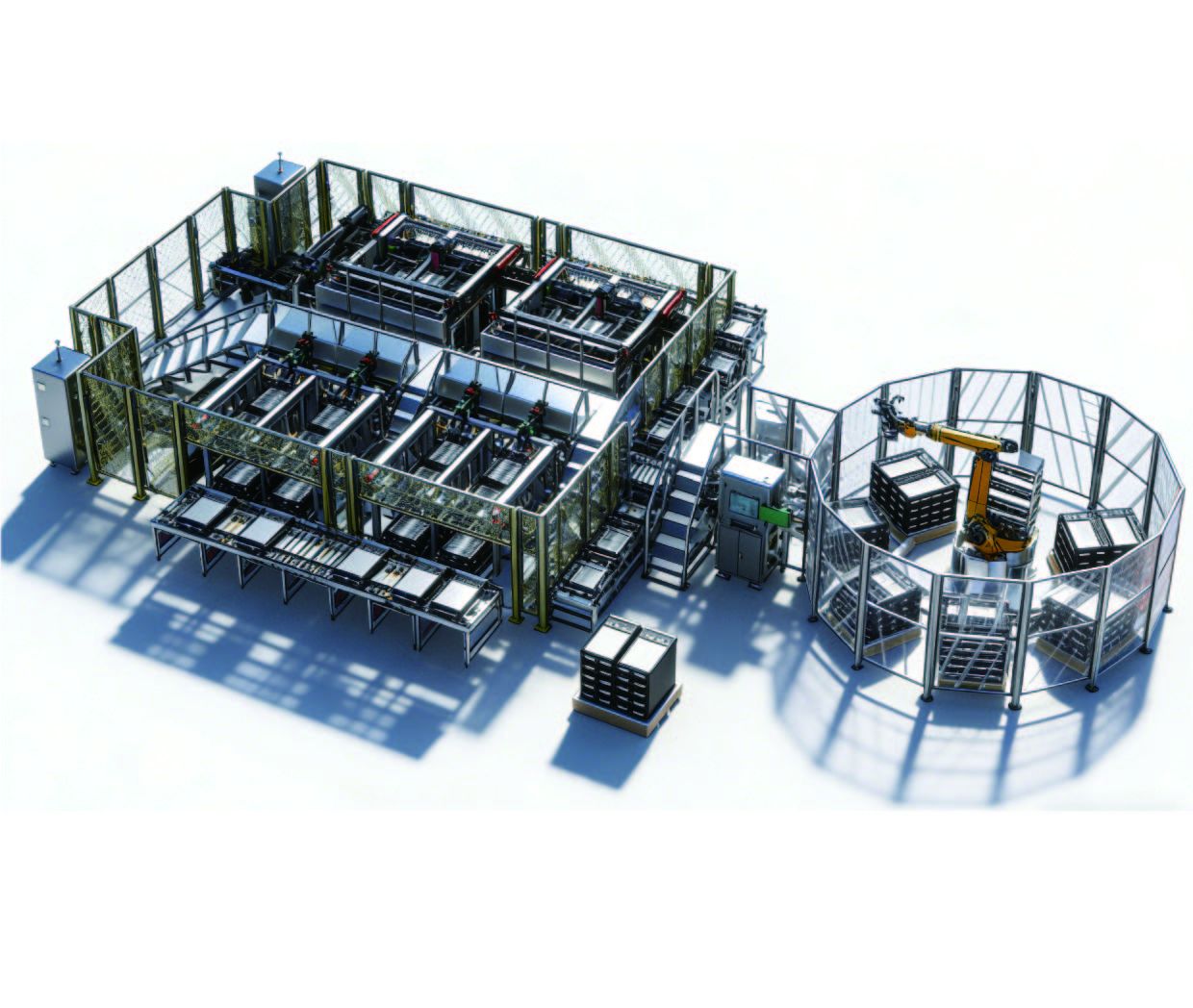

Blade Battery Assembly - Sorting Machine

· Product Description

This sorting machine is mainly used for sorting lithium-ion cells by open-circuit voltage, AC internal resistance and capacity,
as well as packaging and stacking. It is equipped with a QR code scanning function.

Technical Parameters
1. Final yield: ＞99.9% (excluding incoming defects);
　Downtime rate (DT): ≤1%; CPK ＞1.67
2. Production capacity: 1 PPM~30 PPM, customized capacity
　available
3. Voltage range: 0-5 V
4. Voltage test accuracy: ±(0.0035%set + 0.0005%FS)
5. Voltage display resolution: 2 μV
6. IMP range: 0-3000 Ω
7. IMP test accuracy: ±(0.5%rdg + 10 dgt)
8. IMP resolution: 0.1 μΩ
9. Discharging and stacking: ABB or KUKA 6-axis robots stack
　cell trays of different grades onto pallets. Finished products are
　transported out by manual forklifts or AGVs.
10. OCV test: Adopts Agilent 34461A voltmeter;
　IMP test: Adopts Hioki BT3562
