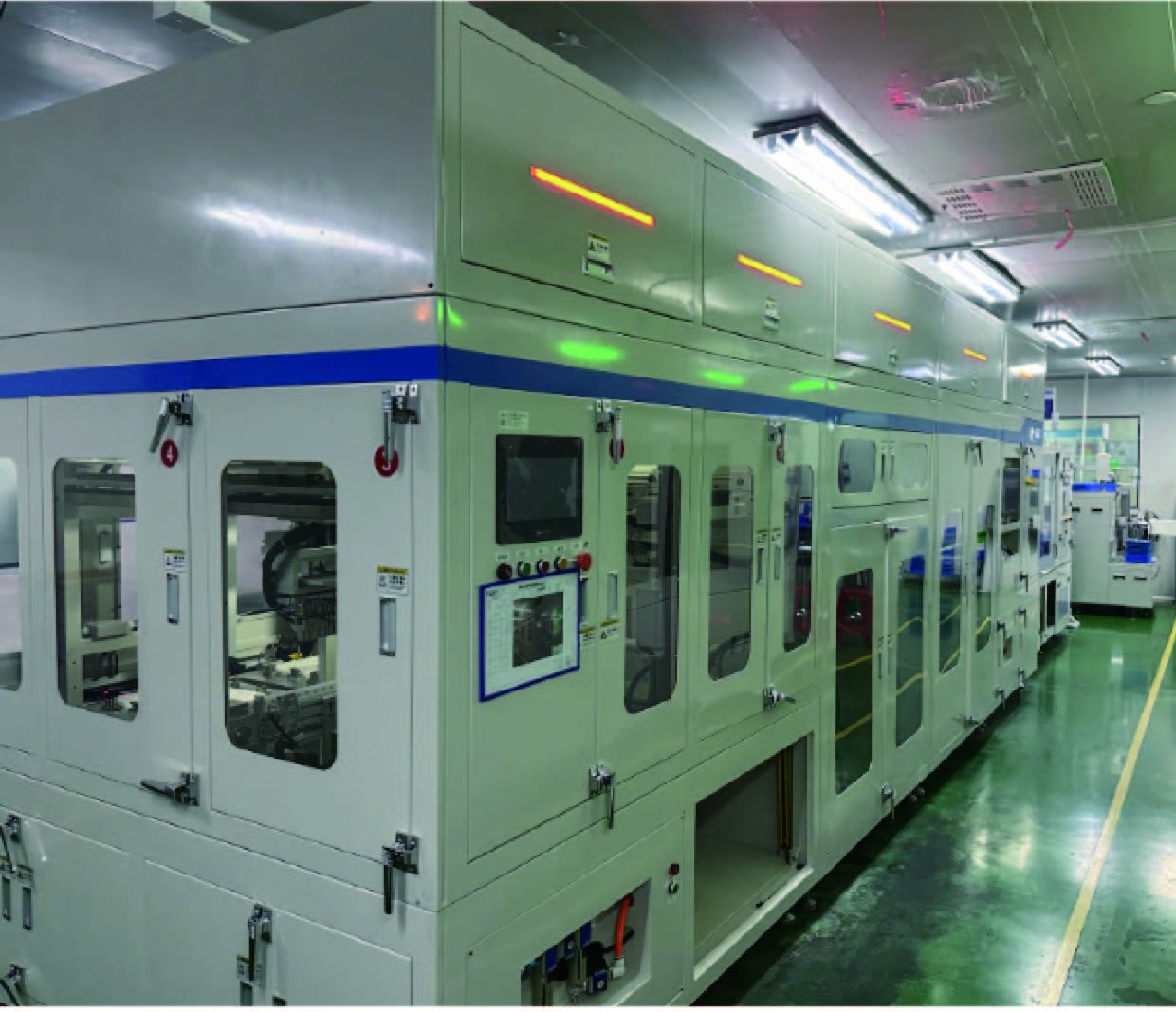

Cylindrical Cell Electrolyte Filling Machine

· Product Description

This machine is applied to primary and secondary electrolyte filling for large cylindrical cells such as 4680. Main functions include
automatic loading, automatic hole alignment, Hi-pot test, code scanning and pre-weighing, automatic electrolyte filling,
pressure-balanced soaking, post-weighing and code scanning, on-line refilling for NG products, automatic filling port cleaning,
automatic plugging with process pins, sealing pins or steel balls, as well as automatic unloading and palletizing.

Overall Dimension (L×W×H): 20000×6500×3500mm (subject to actual layout)
Machine Weight: Over 20 tons

Performance Indicators
1. Designed Production Rate: 60~200 PPM
2. Filling Mode: Vacuum / Atmospheric pressure filling;
　Soaking Mode: Pressure-balanced soaking
3. Filling Volume: 10~400g
4. Filling Accuracy: ±1.0g for volume below 100g, ±0.5%
　for volume above 100g
5. First-pass Yield: ≥99.5%
6. Failure Rate: ≤2%
7. Operation Availability: ≥95%
