Provide Global Customers with Battery Intelligent Manufacturing Total Solutions and Services

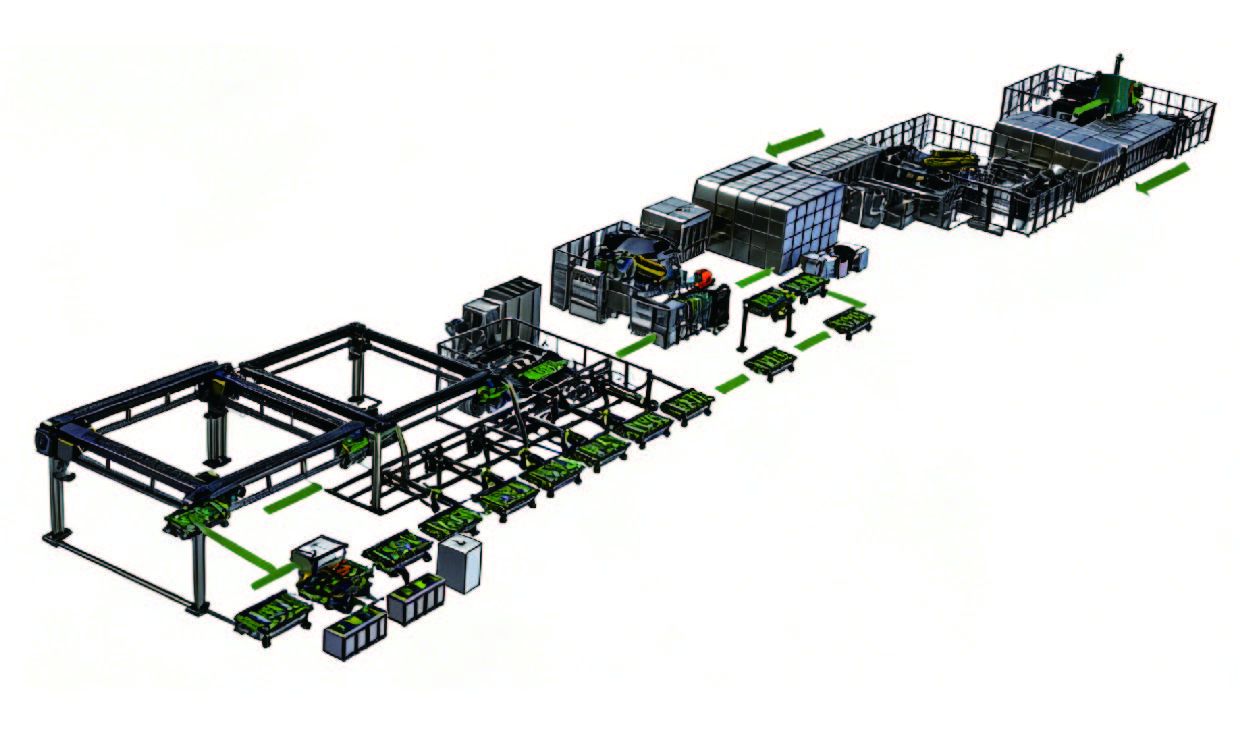

Process flow: automatic cell feeding, OCV, taping, taping inspection, automatic stacking, module steel belt sleeving and PET
strapping, module marking, module insulation test, photographing, terminal cleaning, BSB welding and test; lower PACK housing
gluing, automatic module loading into housing, PACK accessory assembly and test.
Technical Parameters
1. Line dimension(L×W×H): 100m×10m×3.2m
2. Line takt: 16PPM
3. Equipment failure rate ≤3%
4. First-pass yield＞99.5%, secondary yield＞99.95%
5. Changeover time ≤8H (excluding initial changeover)
6. Compatible size: Module 1200×400×250mm;
PACK 2100×800×350mm
1. Strong compatibility for convenient model changeover,
supports 280Ah/314Ah/628Ah/587Ah products
2. Simple and convenient commissioning, bulk feeding mode
adopted; AGV conveying used in PACK section
3. Design delivery period: 65-75 days, configuration adjustable
per customer requirements
4. Whole-line parameters can be saved locally or uploaded to
MES 5. Stable equipment operation
