Provide Global Customers with Battery Intelligent Manufacturing Total Solutions and Services

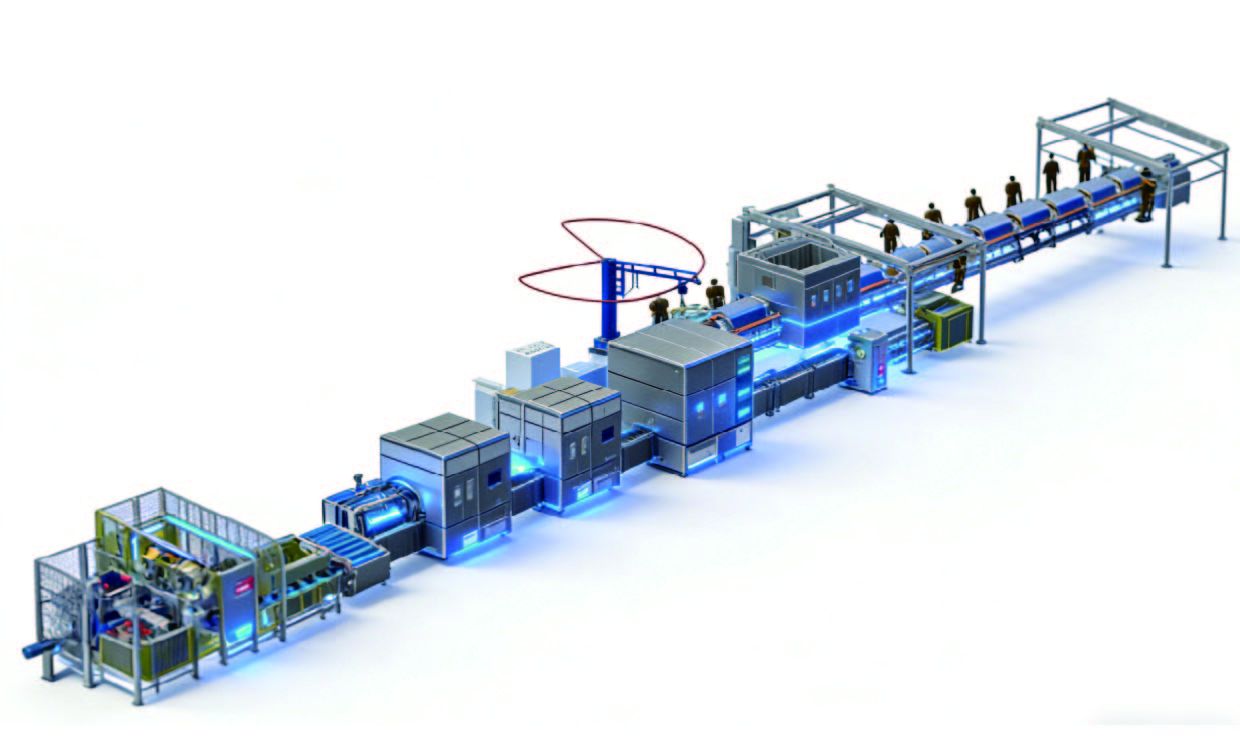

Process: manual cell feeding, OCV, manual taping, manual stacking, steel belt fitting and PET strapping, module insulation test,
photographing, terminal cleaning, BSB welding and test; lower PACK housing gluing, manual module loading into housing, PACK
assembly and test.
Technical Parameters
1. Line dimension(L×W×H): 50m×9m×3.2m
2. Line takt: 8PPM; equipment failure rate ≤2%
3. First-pass yield ≥99.5%, secondary yield ≥99.95%
4. Changeover time ≤4H (excluding initial changeover)
5. Compatible size: Module 1000×400×250mm; P
ACK 1300×600×300mm
1. Strong compatibility for easy model changeover
2. Simple and convenient commissioning; design delivery
cycle: 45-60 days
3. Configurable function addition or reduction per customer
demands
4. Line parameters can be saved locally or uploaded to MES
5. Stable equipment operation; compatible with household and
commercial energy storage products
