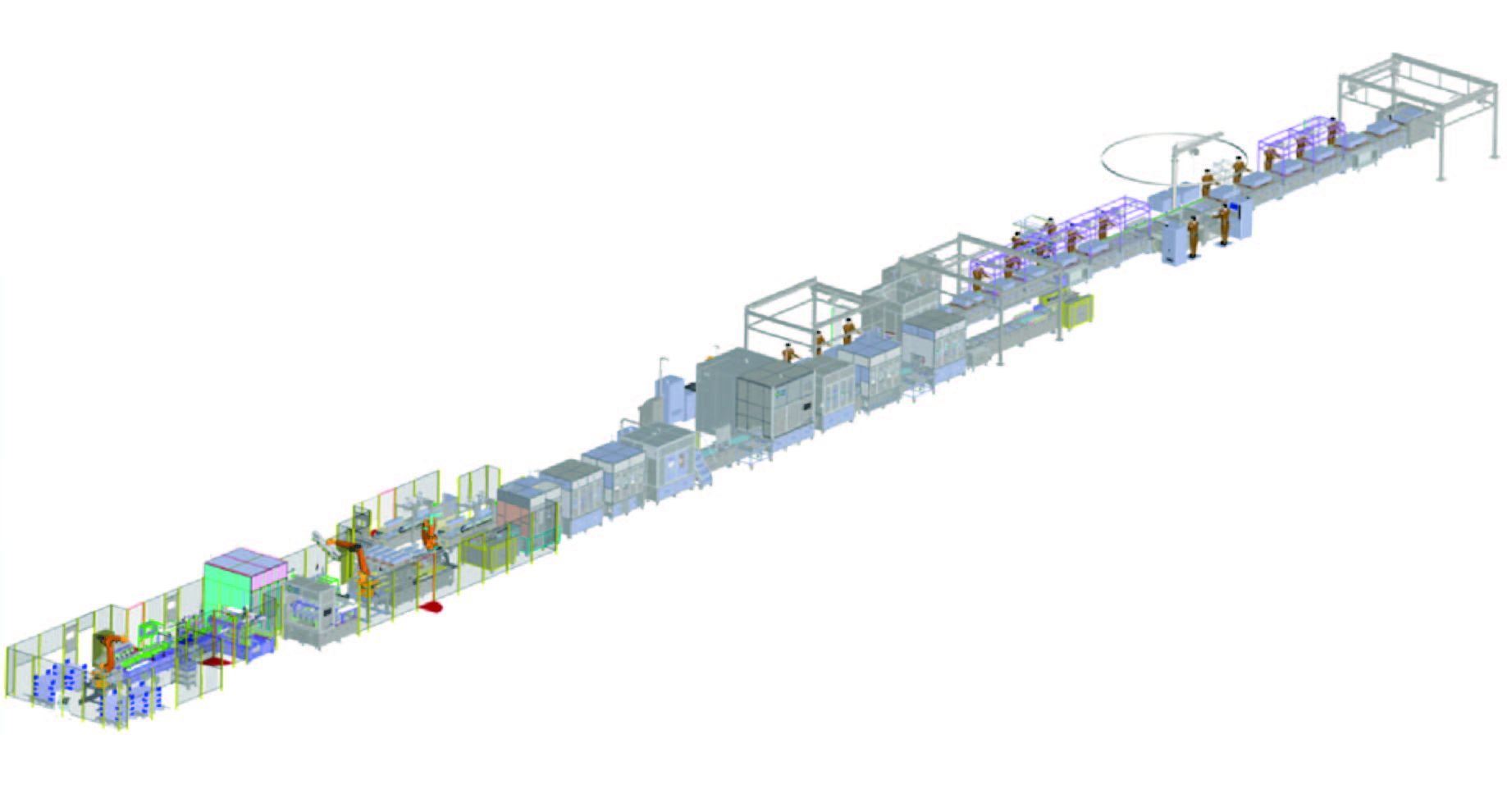

Provide Global Customers with Battery Intelligent Manufacturing Total Solutions and Services
Process flow: automatic cell feeding, OCV, taping, automatic stacking, module steel belt sleeving and PET strapping, module
marking, module insulation test, photographing, terminal cleaning, BSB welding and test; lower PACK housing gluing, manual
module loading into housing, PACK assembly and test.
Technical Parameters
1. Line dimension(L×W×H): 87m×8m×3.2m
2. Line takt: 12PPM, equipment failure rate ≤3%
3. First-pass yield ≥99.5%, secondary yield ≥99.95%
4. Changeover time ≤4H (excluding initial changeover)
5. Compatible size: Module 1200×400×250mm;
PACK 1300×600×300mm
1. Strong compatibility for convenient model changeover
2. Simple and convenient commissioning, design delivery
period: 55-65 days
3. Configuration can be added or reduced as per customer
requirements
4. Whole-line parameters can be saved locally or uploaded
to MES
5. Stable equipment operation, applicable for household energy
storage and commercial energy storage products
6. For 1P52S production and compatible with 1P104S; roller
conveying adopted on PACK line
