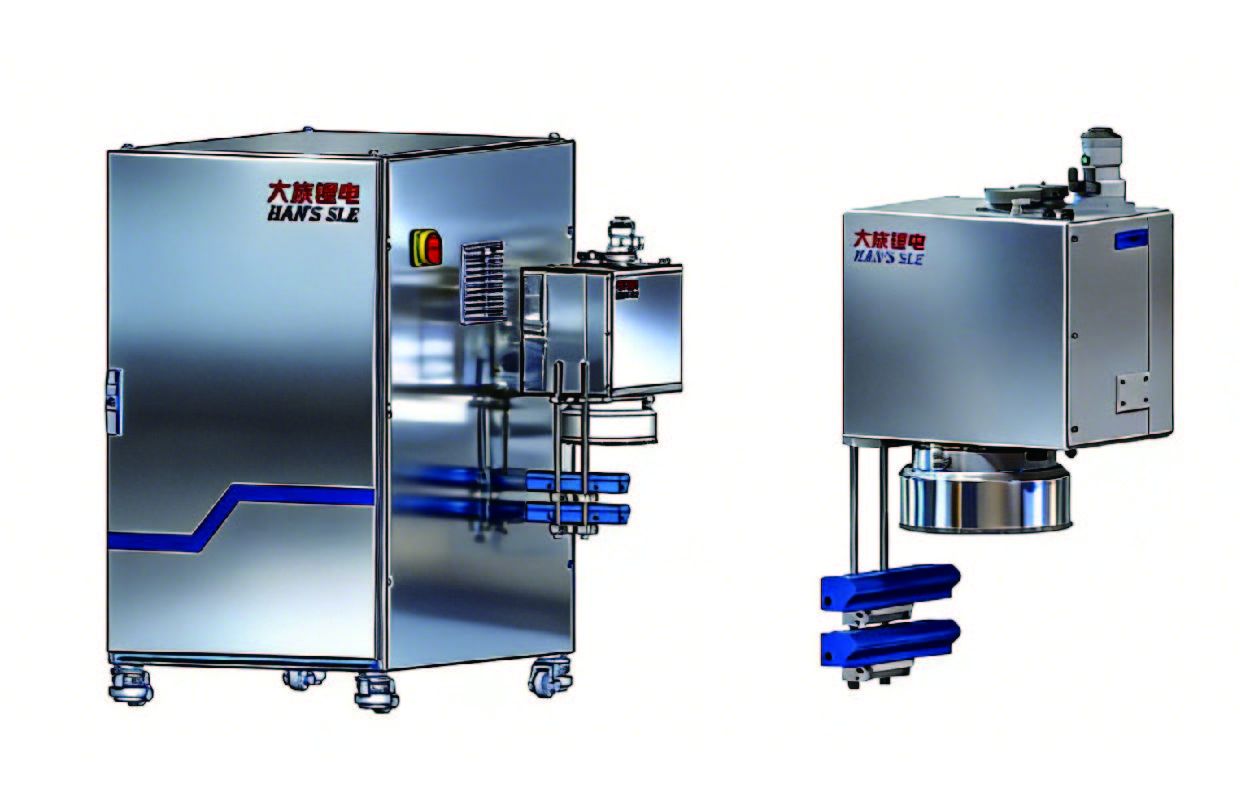

This 3D galvo welding system is independently developed by Core Component Center of Han’s SLE Research Institute,
consisting of 3D galvo head and control cabinet. Digital galvanometers are adopted for X/Y axes and linear motor for Z axis.
The optical path is cooled by combined water cooling and air cooling for outstanding stability, reliability and performance.
Widely applied in new energy, automotive manufacturing, hardware welding and rail transit industries. Capable of complex
welding and 3D machining of workpieces with rapid Z-axis adjustment. Multiple foolproof safety designs and real-time welding
status monitoring guarantee laser operation safety. Dedicated process programmed for Flying welding enables fast Z-axis
adjustment to meet high-speed and high-precision welding requirements.
Technical Parameters
1. Clear aperture: 30 mm
2. Optional multiple F-theta lenses (330 mm, 420 mm, 460 mm)
3. Multiple machine vision options available per application
4. Compatible with welding monitoring system (LWM, WDD)
5. Supports Flying welding with robotic arm and linear
motion platform
6. Real-time monitoring of laser emission duration, welding spot
spacing and moving position
7. Real-time galvo status monitoring; laser interlock within 10 ms
upon abnormal status
Core Advantages
1. Independent R&D on both software and hardware
2. Magnetic levitation Z-axis dynamic focusing
3. Wide range of applicable scenarios
4. Fully compatible with Flying welding
