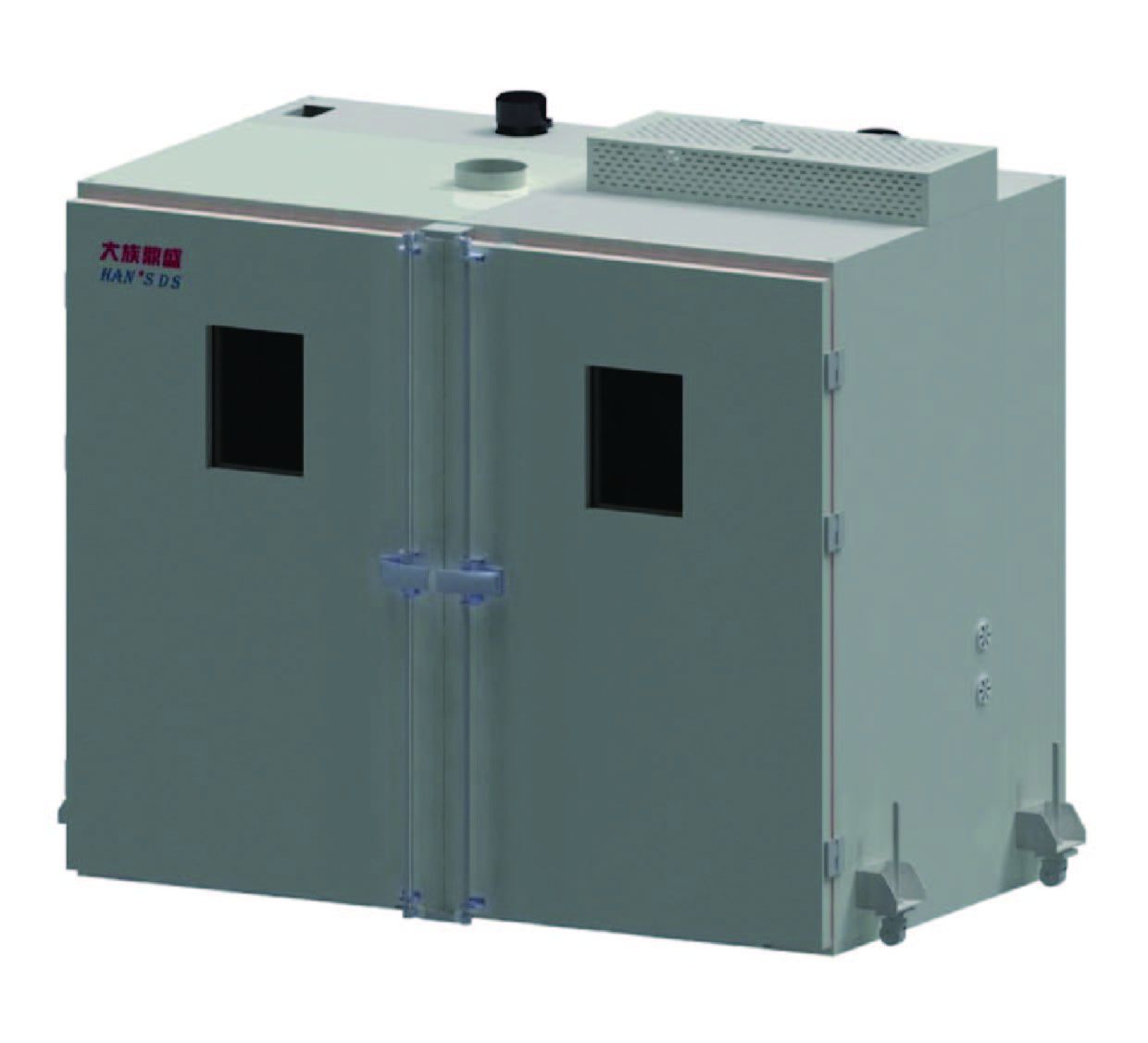

Extended Product – Supercapacitor High-Temperature Aging Equipment

· Product Description

Technical Parameters
1. Temperature range: RT~60℃
2. Temperature accuracy: ±3℃
3. Temperature fluctuation: ±2℃
4. Heating rate: Less than 30 minutes from 25℃ to 60℃
　under no-load condition
5. Protection types: mechanical expansion over-temperature
　protection, electronic over-temperature protection and
　cabinet pressure protection
6. Operating mode: hot air circulation heating
7. Fire protection system: Fire sprinkler and smoke exhaust
　fan are equipped inside the chamber

Technical Parameters
1. Voltage range: 0-5V
2. Voltage accuracy: 0.05%FS @25±5℃
3. Current range: 0-200A
4. Current accuracy: 0.05%FS @25±5℃
5. Protection types: overvoltage protection, undervoltage
　protection, overcurrent protection, undercurrent protection,
　overcapacity protection, overtemperature protection and
　reverse connection protection
6. Configurable operating modes: constant-current charge/discharge,
　constant-voltage charge/discharge, constant-power discharge, etc.
7. Operating temperature: 10~35℃, forced air cooling
