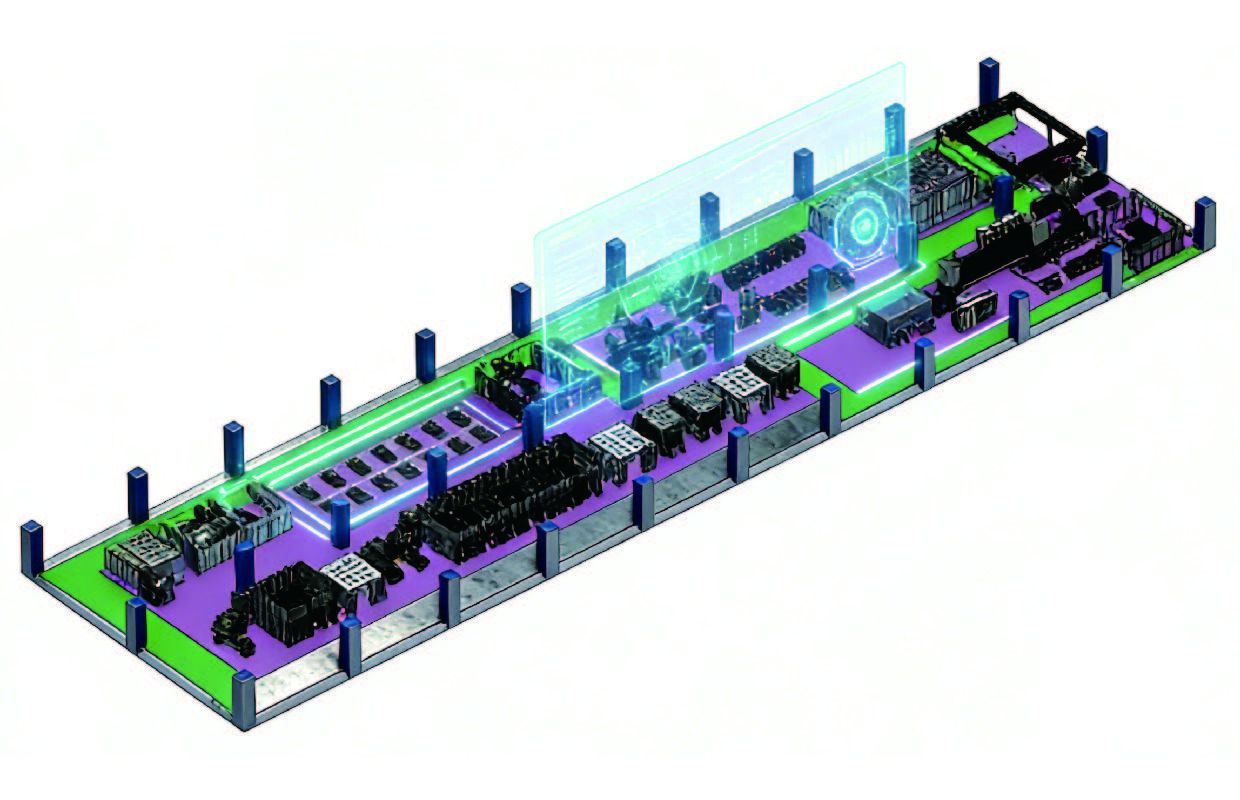

High-Nickel Large Cylindrical Cell CTP Module Assembly Line (20PPM/6JPH)

· Product Description

Full process: cell feeding & barcode scanning, OCV sorting, polarity correction, terminal expansion joint, serpentine plate gluing
& primary stacking, Block turnover, combined stacking, module housing loading, insulation Hipot test, liquid cooling airtight test,
terminal positioning/height inspection/code binding, terminal laser cleaning, busbar fitting, terminal laser welding, housing laser
welding, FPC splitting & hot riveting, FPC welding, NTC dispensing, EOL communication test, DCR test, bracket flange gluing,
housing potting/pressure holding/aging, liquid cooling & finished PACK airtight test, nameplate printing & outgoing inspection.
Overall dimension(L×W×H):91m×23m×3.8m

Technical Parameters

1. Main flow: Component assembly → Side plate welding →
　Heating & aging → BSB welding
2. Takt upgrade history: 60s/Module → 40s/Module → 30s/Module
　→ 25s/Module → 15s/Module
3. Production output: 24 PPM, Pass rate: 99.95%
4. Overall dimension(L×W×H): 63m×10m×3.5m
5. Total equipment weight: 60 tons
